Product Summary

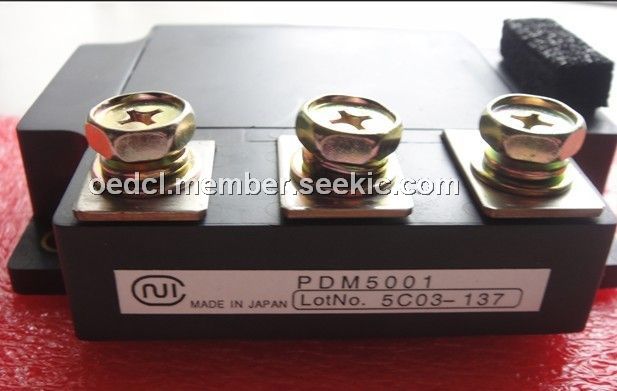

The PDM5001 is a mosfet module.



Parametrics

PDM5001 absolute maximum ratings: (1)Drain-Source Voltage (Vgs=0V)Vdss: 500 V; (2)Gate - Source Voltage Vgss: +/ - 20 V; (3)Continuous Drain Current Duty=50% Id: 50 (Tc=25℃)A; (4)Continuous Drain Current D.C.: 35 (Tc=25℃)A; (5)Pulsed Drain Current Idm: 100 Tc=25℃)A; (6)Total Power Dissipation Pd: 350 Tc=25℃)W; (7)Operating Junction Temperature Range Tjw: -40 to +150 ℃; (8)Storage Temperature Range Tstg: -40 to +125 ℃; (9)Isolation Voltage Terminals to Base AC, 1 min.)Viso: 2000V.

Features

PDM5001 features: (1)Dual MOS FETs Cascaded Circuit; (2)Prevented Body Diodes of MOSFETs by SBDs, and Ultra Fast Recovery Diodes Connected in Parallel; (3)300KHz High Speed Switching Possible TYPICAL APPLICATIONS; (4)Power Supply for the Communications and the Induction Heating.


Diagrams

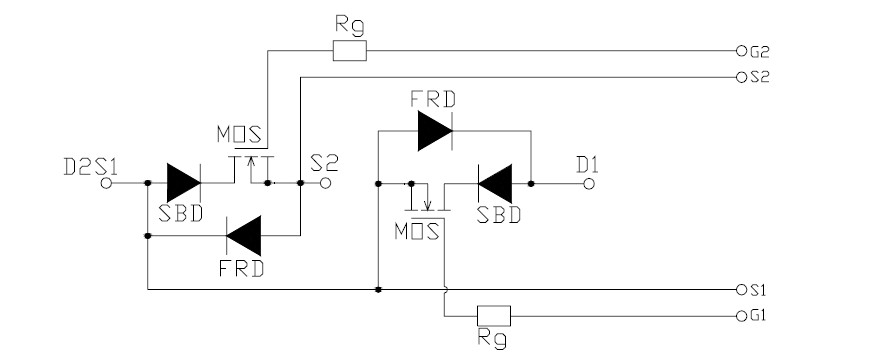

PDM5001 pin connection

PDM505HC
PDM505HC
