Product Summary
The PD10016 is a diode module.
Parametrics
PD10016 absolute maximum ratings: (1)Repetitive Peak Reverse Voltage VRRM: 1600 V; (2)Non Repetitive Peak Reverse Voltage VRSM: 1700 V; (3)Average Rectified Output Current IO(AV): 100 A; (4)RMS Forward Current IF(RMS): 156 A; (5)Surge Forward Current IFSM: 2000 A; (6)I Squared t I2t: 20000 A2s; (7)Operating JunctionTemperature Range Tjw: -40℃ to +150℃; (8)Storage Temperature Range Tstg: -40℃ to +125℃; (9)Isoration Voltage: 2500 V.
Features
PD10016 features: (1)Isolated Base; (2)Dual Diodes Cathode Common and Cascaded Circuit; (3)High Surge Capability; (4)UL Recognized, File No. E187184.

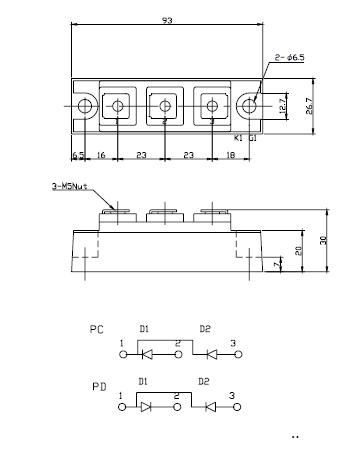

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PD10016 |
Other |
|
Data Sheet |
Negotiable |
|
||||
