Product Summary

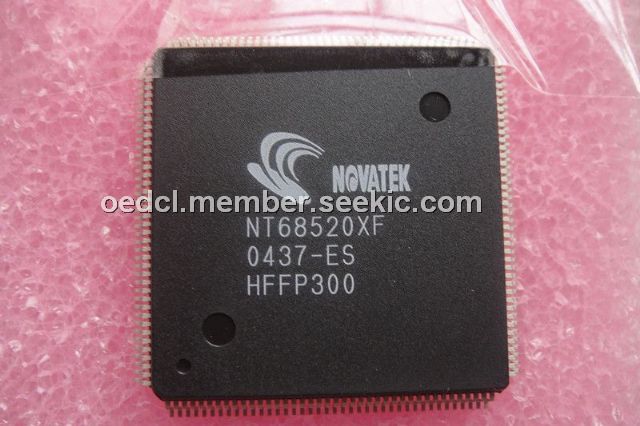

The NT68520XF is a high-quality image and highly integrated LCD controller, which combines triple video pre-amplifier, triple ADC, de-interlacing, YUV to RGB color space converter, scaling engine, gamma, OSD, and digital gain/offset, and supports analog RGB input, digital RGB input, and video CCIR656 8-bit input.The NT68520XF provides 64 RAM font and 128 ROM font that is very simply to create customer OSD. The NT68520XF supports single (24-bit) or dual (48-bit) pixel out format, and supports the 6-bit/color or 8-bit/color LCD panel. The built-in internal PLL locking to the reference clock generates all of the display timing to various LCD panels.
Parametrics
NT68520XF absolute maximum ratings: (1)DVDD,ADC_VA A,PLL_VCC Supply voltage analog 3.3V , digital 3.3V: -0.3 to 3.6 V; (2)Vin Input Voltage ( 5V Tolerant ): -0.3 to 5.5 V; (3)VESD Electrostatic Discharge: ±2.5 KV; (4)TA Ambient Operating Temperature: 0 to 70 ℃; (5)TST Storage Temperature: -40 to 125 ℃.
Features
NT68520XF features: (1)Built-in triple high-speed ADC, PLL, and pre-amplifier for analog RGB input; (2)Support both non-interlaced and interlaced RGB graphic input signals; (3)Internal generated programmable clamping pulse; (4)Gain control for input signal ranging from 0.5V~1.0V; (5)Support 32 steps of phase adjust; (6)ADC sampling rate up to 110 MHz for X type and135 MHz for E type; (7)VGA input resolution up to XGA 1024x768@75 for X type and SXGA 1280x1024@75Hz for E type.

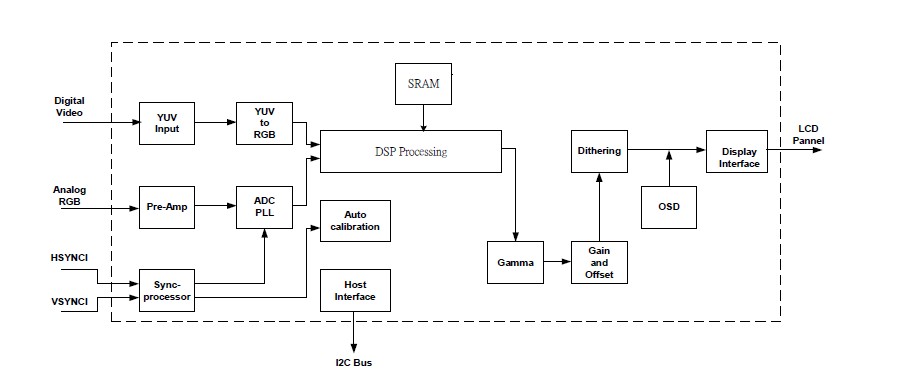

Diagrams
 |
