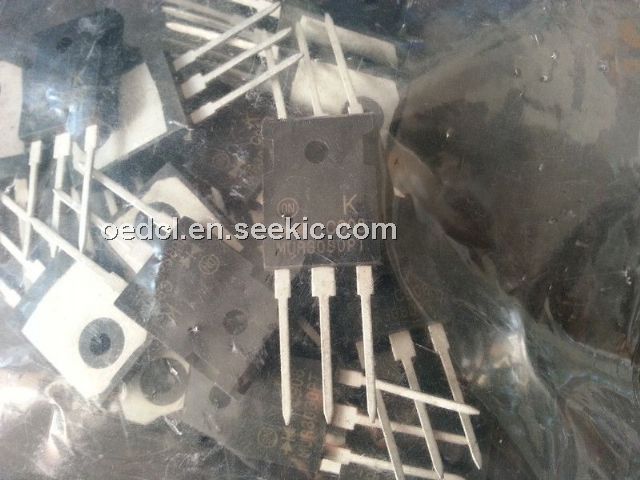

Product Summary

The mur3080pt is an ultra fast recovery diode. Applications of the mur3080pt include: Rectifiers in switch mode power supplies (SMPS) , Uninterruptible power supplies (UPS) and Ultrasonic cleaners and welders.

Parametrics

mur3080pt absolute maximum ratings: (1) IFRMS: 25A (TVJ=TVJM) ; (2) IFAVM: 30A (TC=100°C; rectangular, d=0.5) ; (3) IFRM: 150A (tp<10us; rep. rating, pulse width limited by TVJM) ; (4) IFSM: 75A (TVJ=45°C, t=10ms (50Hz), sine) , 80A (=8.3ms (60Hz), sine) ; (5) I2T: 28A2S (TVJ=45°C, t=10ms (50Hz), sine) , 27A2S ( t=8.3ms (60Hz), sine) ; (6) Ptot: 78W (Tc=25°C) .

Features

mur3080pt features: (1) International standard package JEDEC TO-247AD; (2) Planar passivated chips; (3) Very short recovery time; (4)Extremely low switching losses; (5) Low IRM-values; (6) Soft recovery behaviour.

Diagrams

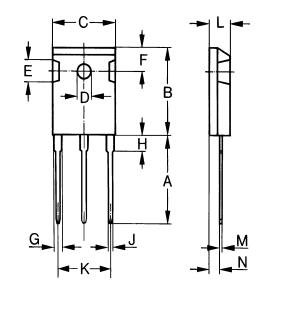

mur3080pt dimension
