Product Summary

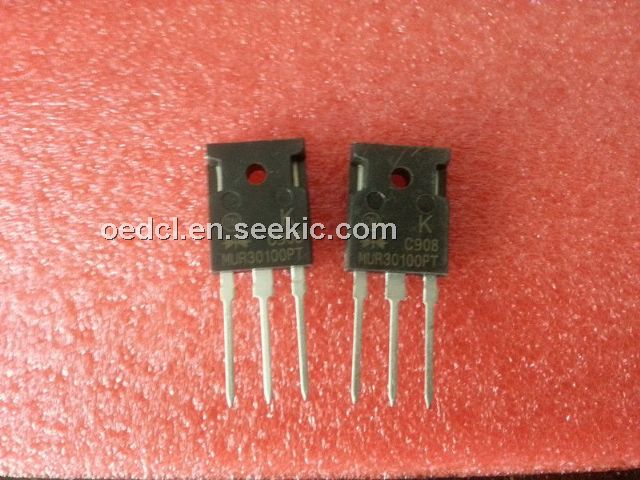

The MUR30100PT is an Ultra Fast Recovery Diode. The applications of it are Rectifiers in switch mode power supplies (SMPS), Uninterruptible power supplies (UPS), Ultrasonic cleaners and welders.

Parametrics

MUR30100PT absolute maximum ratings: (1)IFRMS: 25A; (2)IFAVM: 30A; (3)IFRM: 150A; (4)IFSM: 65, 70, 75, 80A; (5)I2t: 20, 21, 27, 28A2s; (6)TVJ: -40 to 150°C; (7)TVJM: 150°C; (8)Tstg: -40 to 150°C; (9)Ptot: 78W; (10)Md: 0.4 to 0.6Nm; (11)weight: 2g.

Features

MUR30100PT features: (1)International standard package JEDEC TO-247AD; (2)Planar passivated chips; (3)Very short recovery time; (4)Extremely low switching losses; (5)Low IRM-values; (6)Soft recovery behaviour.

Diagrams

MUR30100PT circuit diagram
