Product Summary
The MP3510W is a silicon bridge rectifier.
Parametrics
MP3510W absolute maximum ratings: (1)Maximum recurrent peak reverse voltage VRRM: 1000 V; (2)Maximum RMS voltage VRMS: 700 V; (3)Maximum DC blocking voltage VDC: 1000 V; (4)Maximum average forw ard Output current @TA=25℃: 35.0A; (5)Peak forw ard surge current 8.3ms single half-sine-w ave superimposed on rated load: 400A; (6)Maximum instantaneous forw ard voltage at 17.50 A VF 1.1V; (7)Maximum reverse current @TA=25℃: 10 μA, at rated DC blocking voltage @TA=100℃: 1mA; (8)Operating junction temperature range TJ: - 55 ---- + 125℃; (9)Storage temperature range TSTG: - 55 ---- + 150℃.
Features
MP3510W features: (1)Rating to 1000V PRV; (2)Surge overload rating to 400 Amperes peak; (3)Ideal for printed circuit board; (4)Reliable low cost construction utilizing molded plastic technique results in inexpensive product; (5)Lead solderable per MIL-STD-202 method 208.

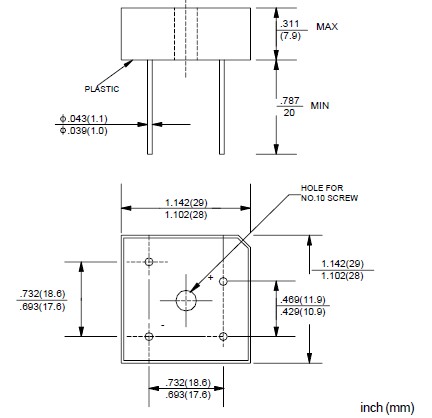

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MP3510W |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
