Product Summary

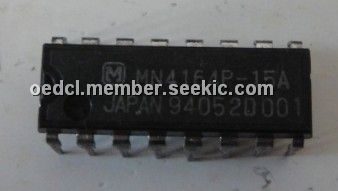

The MN4164P-15A is a NMOS 65,536 × 1 bit dynamic RAM. System oriented features include operation from a single +5V ±10% tolerance power supply, direct TTL interfacing capability, onchip addresses and data registers which eliminate the need for interface registers, and two chip select methods to allows the user to determine the appropriate speed/power characteristics of the MN4164P-15A.
Parametrics
MN4164P-15A absolute maximum ratings: (1)Voltage on any pin relative to VSS VIN, VOUT: -1.0 to +7.0 V; (2)Voltage on VCC supply relative to VSS VCC: -1.0 to +7.0 V; (3)Operating temperature TOP: 0 to 70 ℃; (4)Storage temperature Tstg: -55 to +150 ℃; (5)Power dissipation PD: 1 W; (6)Short circuit current ISO: 50 mA.
Features
MN4164P-15A features: (1)65,536 × 1 RAM, 16-pin package; (2)Low power dissipation: 275mW max(active), 27.5mW max(standby); (3)Single 5V supply, ±10% tolerance; (4)128 refresh cycles/2ms.
