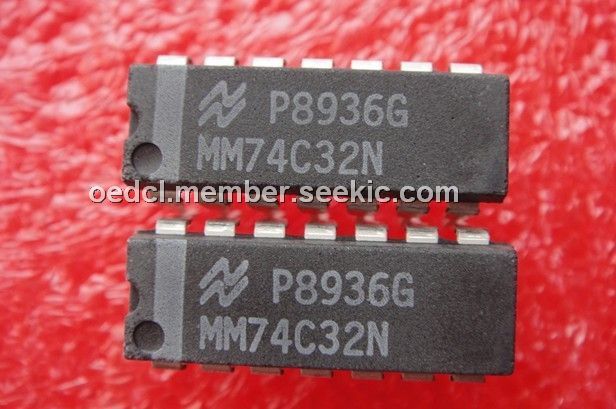

Product Summary
The MM74C32N is a Quad 2-Input OR Gate. The MM74C32N employs complementary MOS (CMOS) transistors to achieve low power and high noise margin, these gates provide the basic functions used in the implementation of digital integrated circuit systems. The N- and P-channel enhancement mode transistors provide a symmetrical circuit with output swings essentially equal to the supply voltage. This results in high noise immunity over a wide supply voltage range. No DC power other than that caused by leakage current is consumed during static conditions. All inputs of the MM74C32N are protected against static discharge damage.
Parametrics
MM74C32N absolute maximum ratings: (1)Voltage at Any Pin: -0.3V to VCC + 0.3V; (2)Operating Temperature Range: -40℃ to +85℃; (3)Storage Temperature Range: -65℃ to +150℃; (4)Power Dissipation (PD):Dual-In-Line 700 mW, Small Outline 500 mW; (5)Operating VCC Range: 3.0V to 15V; (6)Absolute Maximum VCC: 18V; (7)Lead Temperature (Soldering, 10 seconds): 260℃.
Features
MM74C32N features: (1)Wide supply voltage range: 3.0V to 15V; (2)Guaranteed noise margin: 1.0V; (3)High noise immunity: 0.45V VCC (typ.); (4)Low power TTL compatibility: faout of 2 driving 74L.

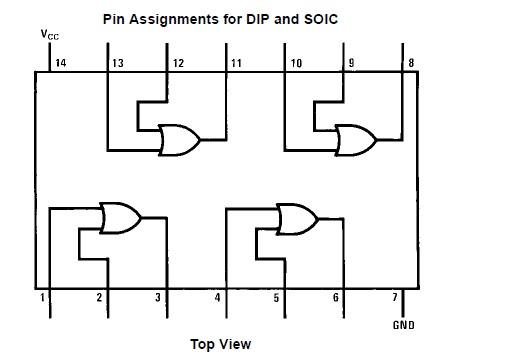

Diagrams
