Product Summary
The mdt10p55b1s is an EPROM-Based 8-bit micro-controller. The mdt10p55b1s uses a fully static CMOS technology process to achieve higher speed and smaller size with the low power consump-tion and high noise immunity. Applications of the mdt10p55b1s include: appliance motor control and high speed automotive to low power remote transmitters/receivers, small instruments, chargers, toy, automobile and PC pe-ripheral etc.
Parametrics
mdt10p55b1s absolute maximum ratings: (1) Operating voltage : 2.5 ~ 5.5V; (2) Operating frequency : 0 ~ 20 MHz; (3) Input Voltage Vil: 1.5V; (4) Output Current: 25mA.
Features
mdt10p55b1s features: (1) Fully CMOS static design; (2) 8-bit data bus; (3) On chip EPROM size: 1K words; (4) Internal RAM size: 72 bytes; (5) 36 single word instructions; (6) 14-bit instructions; (7) Operating voltage: 2.5~ 5.5V; (8) Operating frequency: 0 ~ 20MHz; (9) 8-bit real time clock/counter(RTCC) with 8-bit programmable prescaler; (9) On-chip RC oscillator based Watchdog Timer(WDT) ; (10) Wake-up from sleep on pin change.

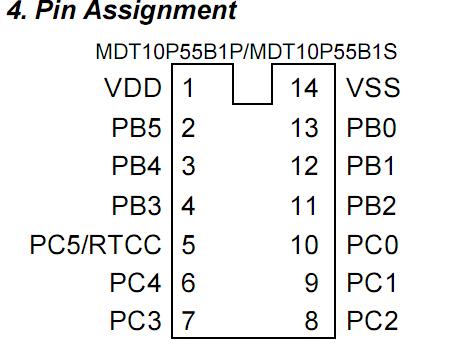

Diagrams
