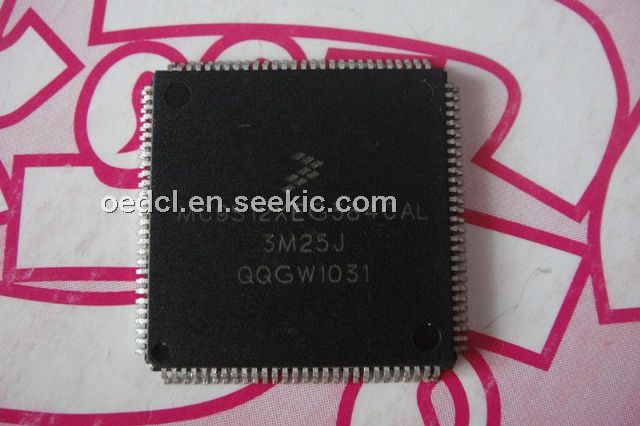

Product Summary

The MC9S12XEG384CAL is a micro controller which is a further development of the S12XD-Family including new features for enhanced system integrity and greater functionality. These new features include a Memory Protection Unit (MPU) and Error Correction Code (ECC) on the Flash memory together with enhanced EEPROM functionality (EEE), an enhanced XGATE, an Internally filtered, frequency modulated Phase Locked Loop (IPLL) and an enhanced ATD.

Parametrics

MC9S12XEG384CAL absolute maximum ratings: (1)I/O, regulator and analog supply voltage: –0.3 to 6.0 V; (2)Digital logic supply voltage: -0.3 to 2.16V; (3)PLL supply voltage: –0.3 to 2.16 V; (4)NVM supply voltage: –0.3 to 3.6 V; (5)Voltage difference VDDX to VDDA: –6.0 to 0.3 V; (6)Voltage difference VSSX to VSSA: –0.3 to 0.3 V; (7)Digital I/O input voltage: –0.3 to 6.0 V; (8)Analog reference: –0.3 to 6.0 V; (9)Storage temperature range: –65 to 155℃.

Features

MC9S12XEG384CAL features: (1)16-Bit CPU12X; (2)Enhanced indexed addressing; (3)Access to large data segments independent of PPAGE; (4)Eight levels of nested interrupts; (5)Flexible assignment of interrupt sources to each interrupt level; (6)External non-maskable high priority interrupt (XIRQ); (7)Internal non-maskable high priority Memory Protection Unit interrupt; (8)Up to 24 pins on ports J, H and P configurable as rising or falling edge sensitive interrupts; (9)EBI (external bus interface)(available in 208-Pin and 144-Pin packages only); (10)BDM (background debug mode); (11)MPU (memory protection unit).

Diagrams

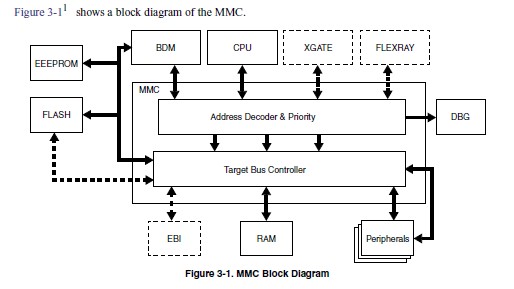

MC9S12XEG384CAL block diagram
