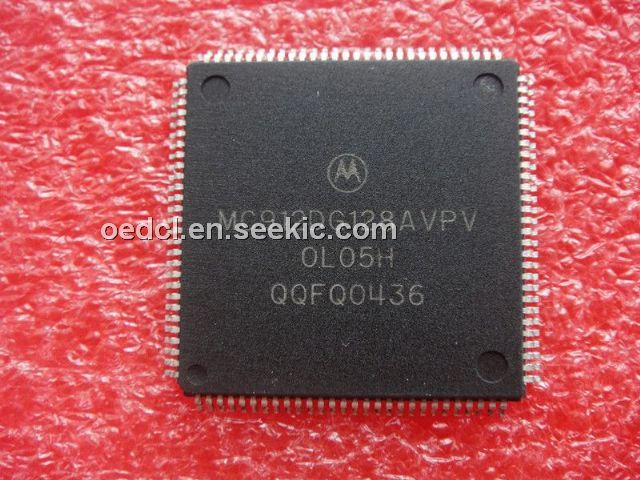

MC912DG128AVPV

MC912DG128AVPV, Microcontroller, QFP, -0.3V, +6.5V, Motorola, Inc

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~2.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	2.20 / Piece
11 ~ 100 :	2.00 / Piece

PartNumber:: MC912DG128AVPV

Brand:: Motorola, Inc - Motorola | Pack: QFP | D/C: 09+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-07

From Other Seller

Part Number:MC912DG128AVPV
US $2.00 - 2.20
Quantity:

piece

Product Summary

The MC912DG128AVPV is a Microcontroller.

Parametrics

MC912DG128AVPV absolute maximum ratings: (1)Supply voltage: -0.3 to +6.5 V; (2)Input voltage: -0.3 to +6.5 V; (3)Operating temperature range: -40 to +85℃; (4)Storage temperature range: -55 to +150℃; (5)Current drain per pin(3) Excluding VDD and VSS: ±25mA; (6)VDD differential voltage: 6.5 V.

Features

MC912DG128AVPV features: (1)Upward compatible with M68HC11 instruction set; (2)Interrupt stacking and programmer’s model identical to M68HC11; (3)20-bit ALU; (4)Instruction queue; (5)Enhanced indexed addressing; (6)128K byte flash EEPROM, made of four 32K byte modules with 8K bytes protected BOOT section in each module; (7)2K byte EEPROM; (8)8K byte RAM with Vstby, made of two 4K byte modules; (9)Two receive and three transmit buffers per CAN; (10)Flexible identifier filter programmable as 2 x 32 bit, 4 x 16 bit or 8 x 8 bit; (11)Four separate interrupt channels for Rx, Tx, error and wake-up per CAN; (12)Low-pass filter wake-up function; (13)Loop-back for self test operation; (14)Programmable link to a timer input capture channel, for timestamping and network synchronization.
