Product Summary
The MC68B50P Asynchronous Communications interface adapter provides the data formatting and control to interface serial asynchronous data communications information to bus organized systems such as the MC6800 micro-processing unit. The bus interface of the MC68B50P includes select, enable, read/write, interrupt and bus interface logic to allow data transfer over an 8-bit bidirectional data bus.
Parametrics
MC68B50P absolute maximum ratings: (1)supply voltage: -0.3 to +7.0 V; (2)input voltage: -0.3 to +7.0 V; (3)operating temperature range - TL to TH: 0 to +70 ℃; (4)storage temperature range: -55 to +150 ℃.
Features
MC68B50P features: (1)8- and 9-bit transmission; (2)optional even and odd parity; (3)parity, overrun and framing error checking; (4)programmable control register; (5)optional +1, +16, and +64 clock modes; (6)up to 1.0 Mbps transmission; (7)false start bit delection; (8)peripheral/ modem control functions; (9)double buffered; (10)one- or two-stop bit operation.

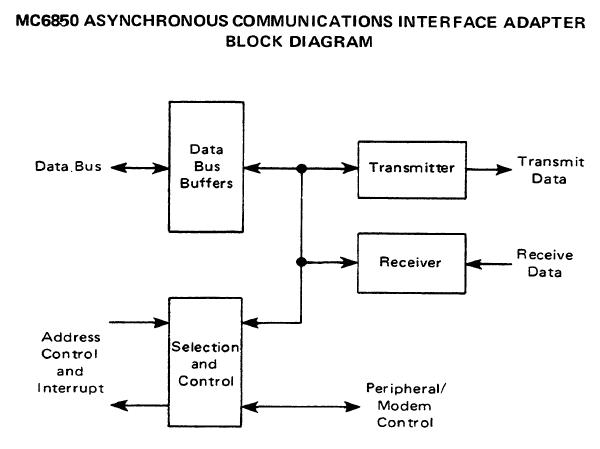

Diagrams
