Product Summary

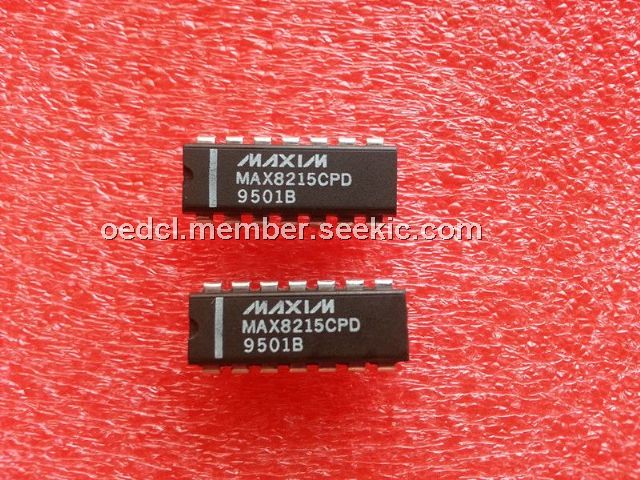

The MAX8215CPD is a ±5V, ±12V (±15V) Dedicated Microprocessor Voltage Monitor. The MAX8215CPD contains five voltage comparators; four are for monitoring +5V, －5V, +12V, and －12V, and the fifth monitors any desired voltage. The MAX8216 is identical, except it monitors ±15V supplies instead of ±12V. The resistors required to monitor these voltages and provide comparator hysteresis are included onchip. All comparators have open－drain outputs. The MAX8215CPD consumes 250uA max supply current over temperature.
Parametrics
MAX8215CPD absolute maximum ratings: (1)VDD: －0.3V, +12V; (2)VREF: －0.3V, (VDD + 0.3V); (3)OUT_, DOUT Outputs: －0.3V, (VDD + 0.3V); (4)+5V Input: +20V, －0.3V; (5)－5V, +12V, +15V, －12V, －15V Inputs: ±50V; (6)DIN Input : (VDD + 0.3V), －0.3V.
Features
MAX8215CPD features: (1)－5V, +12V, －12V, +15V, －15V Dedicated Comparators Have ±1.5% Accuracy; (2)Overvoltage/Undervoltage Detection or Programmable Delay Using Auxiliary Comparator; (3)Internal 1.24V Reference with ±1% Initial Accuracy; (4)Wide Supply Range: 2.7V to 11V; (5)Built－In Hysteresis; (6)250μA Max Supply Current Over Temp.; (7)Independent Open－Drain Outputs; (8)All Precision Components Included.

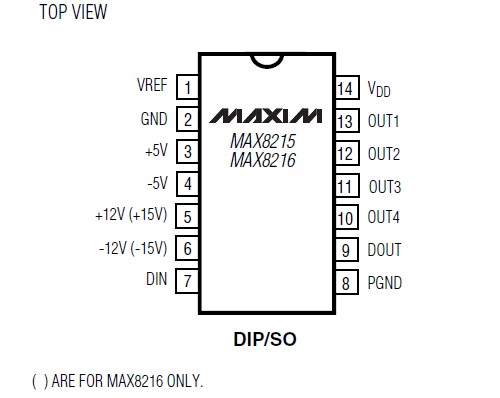

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX8215CPD |
Maxim Integrated Products |
Supervisory Circuits |
Data Sheet |
Negotiable |
|
||||||||||||
 |
MAX8215CPD+ |
Maxim Integrated Products |
Supervisory Circuits 5/12/15V +/-Dedictd MPU Voltage Monitor |
