MAX485ESA

MAX485ESA, Low-Power, Slew-Rate-Limited RS-485/RS-422 Transceiver, SOP, 727mW, -8 to 12.5V, Dallas Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.90~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 5 :	1.00 / Piece
10 ~ 100 :	0.90 / Piece

PartNumber:: MAX485ESA

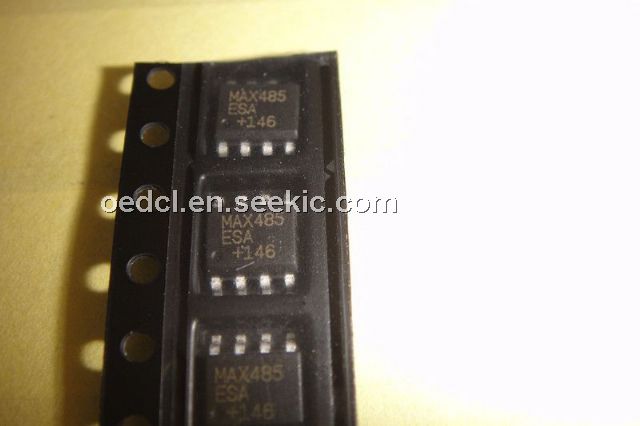

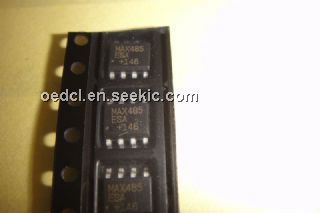

Brand:: Dallas Semiconductor - Maxim | Pack: SOP | D/C: 08+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-03

From Other Seller

Part Number:MAX485ESA
US $0.90 - 1.00
MAX485ESA

US $0.86 - 0.88 / Piece
(0) Remove
MAX485ESA+

US $0.28 - 0.31 / Piece
(0) Remove
Quantity:

piece

Product Summary

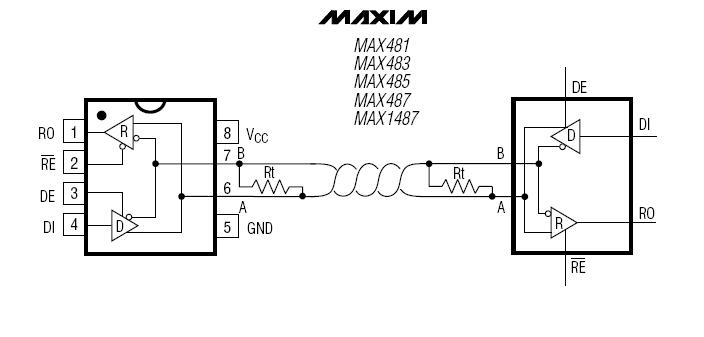

The MAX485ESA is a Low-Power, Slew-Rate-Limited RS-485/RS-422 Transceiver. Each part contains one driver and one receiver. The MAX485ESA features reduced slew-rate drivers that minimize EMI and reduce reflections caused by improperly terminated cables, thus allowing error-free data transmission up to 250kbps. The driver slew rates of the MAX485ESA are not limited, allowing them to transmit up to 2.5Mbps. The applications of the MAX485ESA include Low-Power RS-485 Transceivers, Low-Power RS-422 Transceivers, Level Translators, Transceivers for EMI-Sensitive Applications, Industrial-Control Local Area Networks.

Parametrics

MAX485ESA absolute maximum ratings: (1)Supply Voltage (VCC): 12V; (2)Control Input Voltage (RE, DE): -0.5V to (VCC + 0.5V); (3)Driver Input Voltage (DI): -0.5V to (VCC + 0.5V); (4)Driver Output Voltage (A, B): -8V to +12.5V; (5)Receiver Input Voltage (A, B): -8V to +12.5V; (6)Receiver Output Voltage (RO): -0.5V to (VCC +0.5V); (7)Continuous Power Dissipation (TA = +70℃): 727mW; (8)Storage Temperature Range: -65 to +160℃; (9)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX485ESA features: (1)For Fault-Tolerant Applications: MAX3430: ±80V Fault-Protected, Fail-Safe, 1/4 Unit Load, +3.3V, RS-485 Transceiver; (2)MAX3440E–MAX3444E: ±15kV ESD-Protected, ±60V Fault-Protected, 10Mbps, Fail-Safe, RS-485/J1708 Transceivers; (3)MAX3030E–MAX3033E: ±15kV ESD-Protected, +3.3V, Quad RS-422 Transmitters; (4)MAX3483E/MAX3485E/MAX3486E/MAX3488E/MAX3490E/MAX3491E: +3.3V Powered, ±15kV ESD-Protected, 12Mbps, Slew-Rate-Limited, True RS-485/RS-422 Transceivers.
