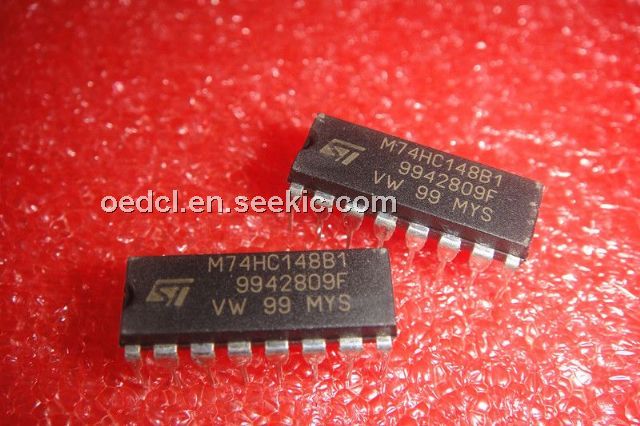

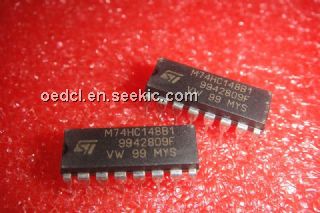

M74HC148B1

M74HC148B1, 8 to 3 line priority encoder, DIP, -0.5V, 7V, STMicroelectronics

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.60~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	1.00 / Piece
100 ~ 1000 :	0.60 / Piece

PartNumber:: M74HC148B1

Brand:: STMicroelectronics - ST | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-04

From Other Seller

Part Number:M74HC148B1
US $0.60 - 1.00
Quantity:

piece

Product Summary

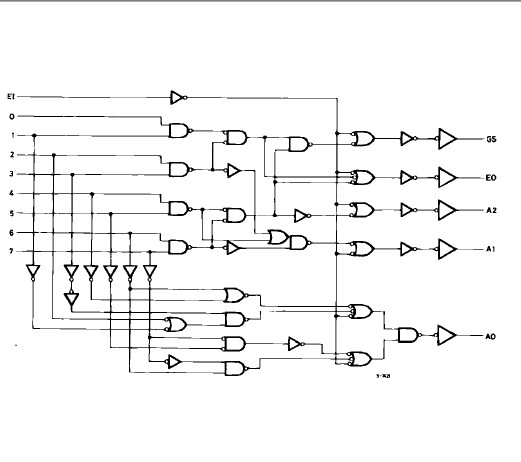

The M74HC148B1 is an 8 to 3 line priority encoder. The M74HC148B1 is a high speed CMOS 8-TO-3 LINE PRIORITY ENCODER fabricated in silicon gate C2MOS technology. It has the same high speed performance for LSTTL combined with true CMOS low power consumption. The M74HC148B1 encodes eight data lines to three-line (4-2-1) binary (octal). Cascading circuitry (enable input EI and enable output EO) has been provided to allow octal expansion without the need for external circuitry. Data inputs are active at the low logic level. All inputs are equipped with protection circuits against static discharge and transient excess voltage.

Parametrics

M74HC148B1 absolute maximum ratings: (1)Supply Voltage: -0.5 to +7 V; (2)DC Input Voltage: -0.5 to VCC + 0.5 V; (3)DC Output Voltage: -0.5 to VCC + 0.5 V; (4)DC Input Diode Current: ± 20 mA; (5)DC Output Diode Current: ± 20 mA; (6)DC Output Source Sink Current Per Output Pin: ± 25 mA; (7)DC VCC or Ground Current: ± 50 mA; (8)Power Dissipation: 500 mW; (9)Storage Temperature: -65 to +150 ℃; (10)Lead Temperature (10 sec): 300 ℃.

Features

M74HC148B1 features: (1)high speed tPD = 15 ns (TYP.) AT VCC = 5 V ; (2)lowpower dissipation ICC = 4 mA (MAX.) AT TA = 25 ℃; (3)high noise immunity vnih= VNIL= 28%VCC (MIN.) ; (4)output drive capability 10 lsttl loads ; (5)balancedpropagation delays tPLH = tPHL ; (6)wide operating voltage range VCC (OPR) = 2 V TO 6 V ; (7)pin and function compatible with 54/74LS148.
