Product Summary

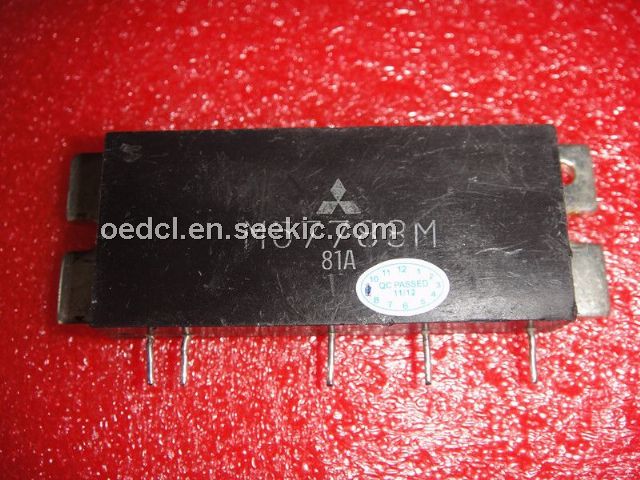

The M57788M is a power module.

Parametrics

M57788M absolute maximum ratings: (1)Supply Voltage(vcc1): 16 V; (2)Supply Voltage(vcc2,3): 17 V; (3)total current: 12A; (4)input power: 0.6W; (5)output power: 50W; (6)operation case temperature: -30 to 110℃; (7)storage temperature: -40 to 110℃.

Features

M57788M features: (1)frequency range: 430~450MHz; (2)output power: 45W; (3)total efficiency: 40%; (4)2nd. harmonic: -30dBc; (5)3rd. harmonic: -30dBc.

Diagrams

M57788M block diagram
