Product Summary

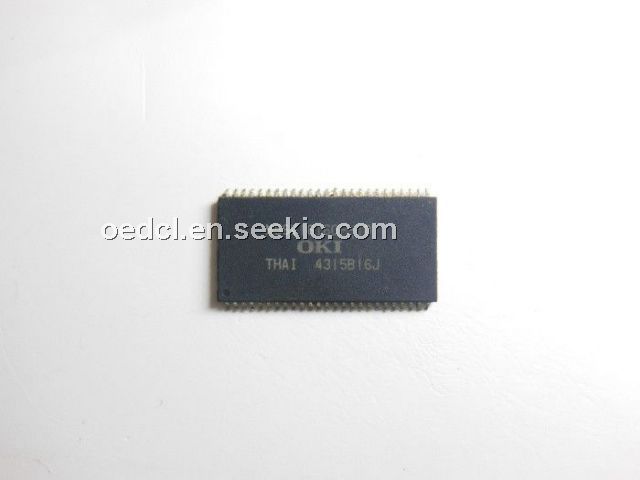

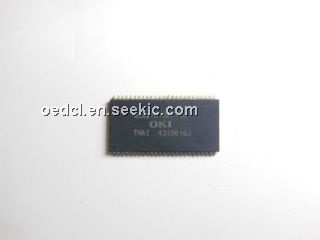

The M56V16160F-10 is a 2-Bank × 524,288-word × 16 bit Synchronous dynamic RAM, fabricated in OKI’s CMOS silicon-gate process technology. The device operates at 3.3V. The inputs and outputs are LVTTL compatible.

Parametrics

M56V16160F-10 absolute maximum ratings: (1)Voltage on Any Pin Relative to VSS VIN, VOUT: -0.5 to VCC + 0.5 V; (2)VCC Supply Voltage VCC, VCCQ: -0.5 to 4.6 V; (3)Storage Temperature Tstg: -55 to 150 °C; (4)Power Dissipation PD*: 600 mW; (5)Short Circuit Current IOS: 50 mA; (6)Operating Temperature Topr: 0 to 70 °C.

Features

M56V16160F-10 features: (1)Silicon gate , quadruple polysilicon CMOS , 1-transistor memory cell; (2)2-bank 524,288-word 16bit configuration; (3)3.3V power supply ± 0.3V tolerance; (4)Input : LVTTL compatible; (5)Output : LVTTL compatible; (6)Refresh : 4096 cycles/64 ms; (7)Programmable data transfer mode:;CAS Latency (1,2,3);Burst Length (1,2,4,8,Full page);Data scramble (sequential , interleave); (8)CBR auto-refresh, Self-refresh capability; (9)Package: 50-pin 400mil plastic TSOP (Type II)(TSOPII50-P-400-0.80-K)(Product : MSM56V16160F-xxTS-K); (10).

Diagrams

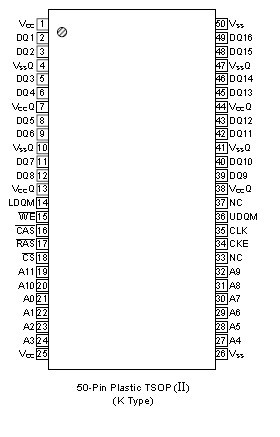

M56V16160F-10 pin connection
