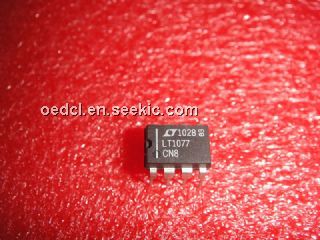

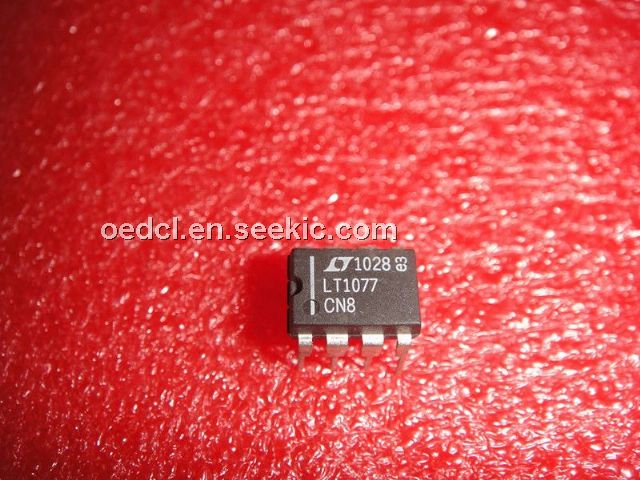

LT1077

LT1077, operational amplifier, 22 V, 60 μA, 10 Hz, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.80~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	2.00 / Piece
20 ~ 100 :	1.80 / Piece

PartNumber:: LT1077

Brand:: LT Electronics Co., Ltd. - LT | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-08

From Other Seller

Part Number:LT1077
US $1.80 - 2.00
Quantity:

piece

Product Summary

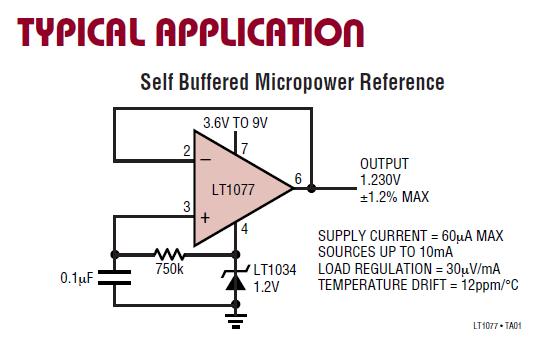

The LT1077 is a micropower precision operational amplifier optimized for single supply operation at 5V. In addition, ±15V specifications are provided. Micropower performance of competing devices is achieved at the expense of seriously degrading precision, noise, speed, and output drive specifications. The LT1077 reduces supply current without sacrificing other parameters. The offset voltage achieved is the lowest of any micropower op amp. The applications of the LT1077 include replaces OP-07, OP-77, AD707, LT1001, LT1O12 at 10 to 60 times lower power, battery or solar powered systems, 4mA to 2OmA current loops, two terminal current source, megaohm source resistance difference amplifier.

Parametrics

LT1077 absolute maximum ratings: (1)Supply voltage: ±22V; (2)Differential input voltage: ±30V; (3)Input voltage: Equal to positive supply voltage; (4)Input voltage: 5V below negative supply voltage; (5)Output short-circuit duration: Indefinite.

Features

LT1077 features: (1)60μA max supply current; (2)40μV max offset voltage; (3)350pA max offset current; (4)0.5μVP-P 0.1Hz to 10Hz voltage noise; (5)2.5pAP-P 0.1Hz to 10Hz Current noise; (6)O.4μV/℃ offset voltage drift; (7)250kHz gain-bandwidth product; (8)0.12V/μs slew rate; (9)Single supply operation input voltage range includes ground output swings to ground while sinking current no pull-down resistors are needed; (10)Output sources and sinks 5mA load current.
