Product Summary

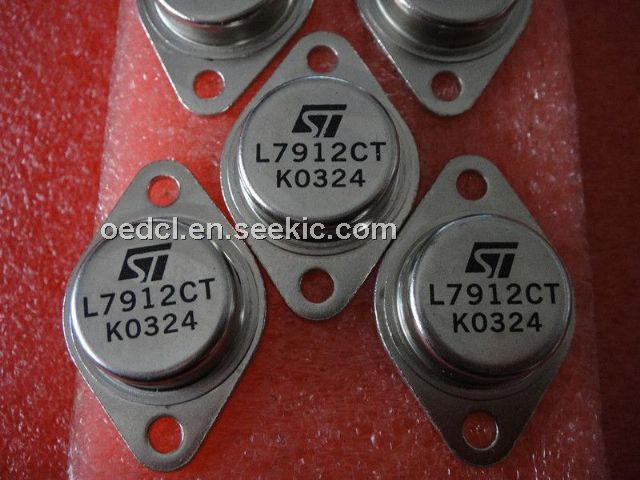

The L7912CT is a negative voltage regulator. The L7912CT is available in TO-220, ISOWATT220 TO-3 and D2PAK packages and several fixed output voltages, making it useful in a wide range of applications.These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation; furthermore, having the same voltage option as the L7800 positive standard series, they are particularly suited for split power supplies. In addition, the -5.2V is also available for ECL system. If adequate heat sinking is provided, they can deliver over 1.5A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltages and currents.
Parametrics
L7912CT absolute maximum ratings: (1)DC Input Voltage: -35V; (2)Output Current: Internally limited; (3)Power Dissipation: Internally limited; (4)Operating Junction Temperature Range: 0 to 150 ℃; (5)Storage Temperature Range: - 65 to 150 ℃.
Features
L7912CT features: (1)output current up to 1.5 A; (2)thermal overloadprotection; (3)short circuit protection; (4)output transition SOA protection.

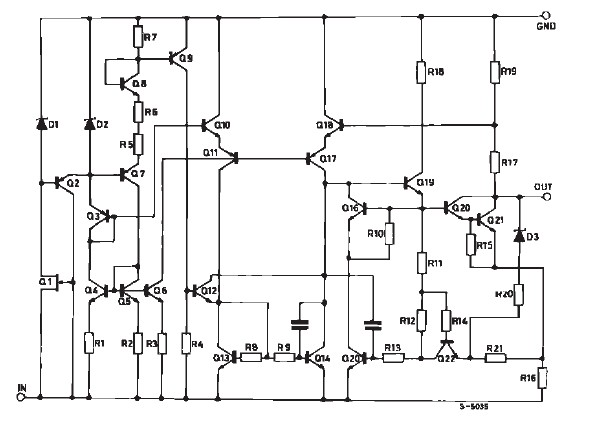

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 L7912CT |
STMicroelectronics |
Linear Regulators - Standard 12V 1.5A Negative |
Data Sheet |
Negotiable |
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
L7912ACD2T |
STMicroelectronics |
Linear Regulators - Standard 12V 1.5A Negative |
Data Sheet |
Negotiable |
|
||||||||||||
|
L7912ACD2T-TR |
STMicroelectronics |
Linear Regulators - Standard 12V 1.5A Negative |
Data Sheet |
Negotiable |
|
||||||||||||
|
L7912ACP |
STMicroelectronics |
Linear Regulators - Standard 12V 1.5A Negative |
Data Sheet |
Negotiable |
|
||||||||||||
|
L7912ACV |
STMicroelectronics |
Linear Regulators - Standard 12V 1.5A Negative |
Data Sheet |
|
|
||||||||||||
|
L7912ACV-DG |
STMicroelectronics |
Linear Regulators - Standard 2 Neg Dual Guage 1.5A -35V to -40V DC |
Data Sheet |
|
|
||||||||||||
|
L7912CD2T |
STMicroelectronics |
Linear Regulators - Standard 12V 1.5A Negative |
Data Sheet |
Negotiable |
|
||||||||||||
