Product Summary
The km681000blg-5l is a 128K x8 bit low power CMOS static RAM. The km681000blg-5l is fabricated by SAMSUNG advanced CMOS process technology. The km681000blg-5 can support various operating temperature ranges and have various package types for user flexibility of system design.
Parametrics
km681000blg-5l absolute maximum ratings: (1) Voltage on any pin relative to Vss VIN, VOUT: -0.5 to 7V; (2) Voltage on Vcc supply relative to Vss Vcc: -0.5 to 7V; (3) Power Dissipation PD: 1W; (4) Storage temperature TSTG: -65 to +150°C; (5) Storage temperature TA: 0 to 70°C; (6) Storage temperature TL: 260°C.
Features
km681000blg-5l features: (1) Process Technology: 0.6 CMOS; (2) Organization: 128Kx8; (3) Power Supply Voltage : Single 5.0V; (4) Low Data Retention Voltage : 2V(Min) ; (5) Three state output and TTL Compatible; (6) Package Type : JEDEC Standard 32-DIP, 32-SOP, 32-TSOP I R/F.

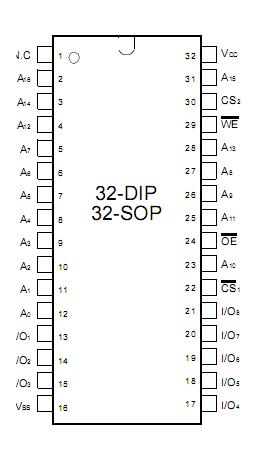

Diagrams
