Product Summary

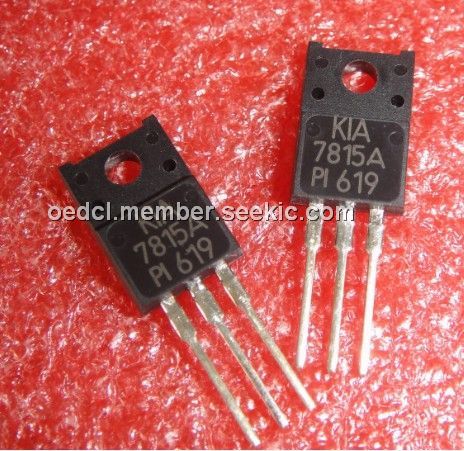

The KIA7815API is a three terminal positive voltage regulator.
Parametrics
KIA7815API absolute maximum ratings: (1)Power Dissipation-1 (No Heatsink)AP PD2: 1.9 W; (2)Power Dissipation-2 (Infinite Heatsink)AP PD2: 30W; (3)Operating Junction Temperature Tj: -40 to 150°C; (4)Storage Temperature Tstg: -55 to 150°C; (5)Maximum Junction Tamperature Tj(max): 150°C; (6)Input Voltage VIN: 35 V.
Features
KIA7815API features: (1)Internal Thermal Overload Protection.; (2)Internal Short Circuit Current Limiting.; (3)Output Current up to 1.5A.; (4)Satisfies IEC-65 Specification. (International Electronical Commission).; (5)Package is TO-220AB.

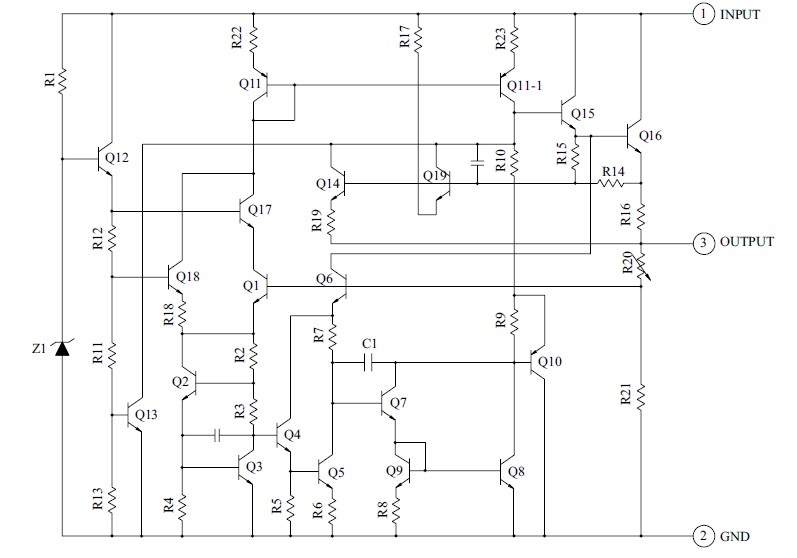

Diagrams
 |
