Product Summary

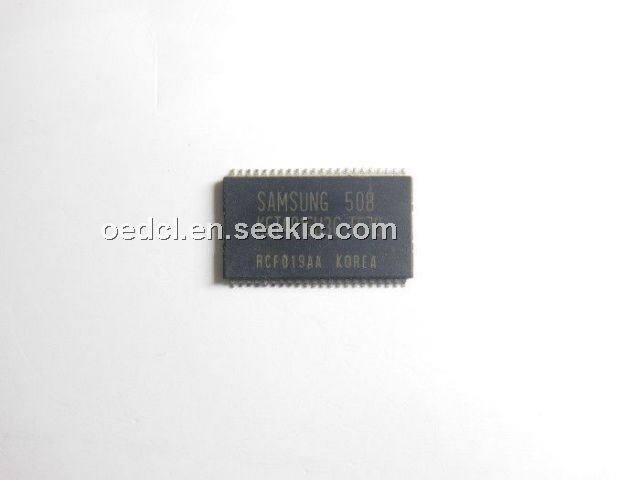

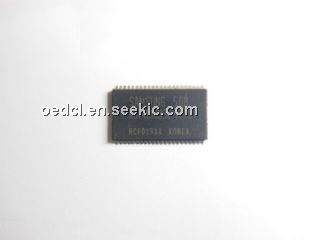

The k6t4016u3c-tf70 is a 256Kx16 bit Low Power and Low Voltage CMOS Static RAM. The k6t4016u3c-tf70 is fabricated by SAMSUNG advanced CMOS process technology. The k6t4016u3c-tf70 supports various operating temperature ranges and has various package types for user flexibility of system design. The k6t4016u3c-tf70 also supports low data retention voltage for battery back-up operation with low data retention current.

Parametrics

k6t4016u3c-tf70 absolute maximum ratings: (1) Voltage on any pin relative to Vss VIN, VOUT: -0.5 to VCC +0.5V; (2) Voltage on Vcc supply relative to Vss Vcc: -0.3 to 4.6V; (3) Power Dissipation PD: 1W; (4) Storage temperature TSTG: -65 to 150°C; (5) Storage temperature TA: -40 to 85°C.

Features

k6t4016u3c-tf70 features: (1) Process Technology: TFT; (2) Organization: 256K x16; (3) Power Supply Voltage: 2.7~3.3V; (4) Low Data Retention Voltage: 2V (Min) ; (5) Three State Outputs; (6) Package Type: 44-TSOP2-400F/R.

Diagrams

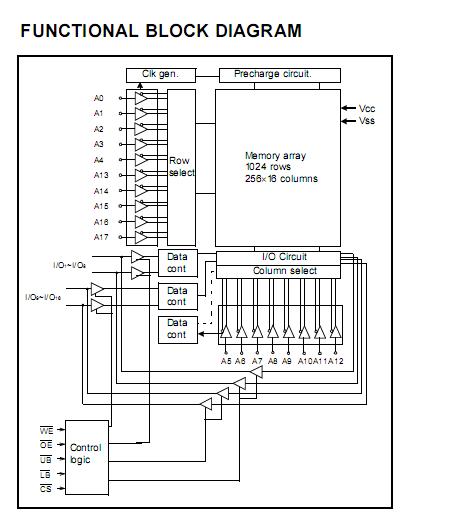

k6t4016u3c-tf70 functional block diagram
