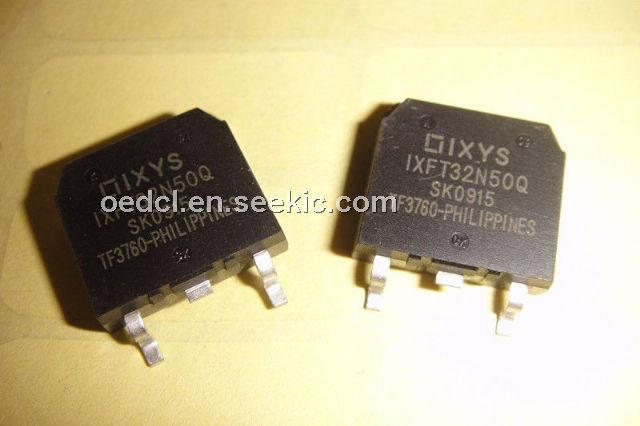

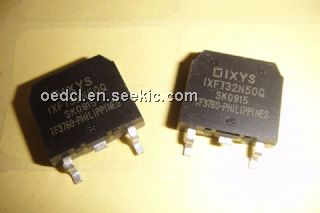

IXFT32N50Q

IXFT32N50Q, power MOSFET, 500 V, 32 A, 416 W, TO

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.20~1.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	1.60 / Piece
100 ~ 1000 :	1.20 / Piece

PartNumber:: IXFT32N50Q

Brand:: IXYS Corporation - ixys | Pack: TO | D/C: 08+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-05

From Other Seller

Part Number:IXFT32N50Q
US $1.20 - 1.60
Quantity:

piece

Product Summary

The IXFT32N50Q is a power MOSFET.

Parametrics

IXFT32N50Q absolute maximum ratings: (1)VDSS TJ = 25°C to 150°C: 500 V; (2)VDGR TJ = 25°C to 150°C; RGS = 1 MΩ: 500 V; (3)VGS Continuous: ±20 V; (4)VGSM Transient: ±30 V; (5)ID25 TC = 25°C: 32 A; (6)IDM TC = 25°C; pulse width limited by TJM: 128 A; (7)IAR TC = 25°C: 32 A; (8)EAR TC = 25°C: 45 mJ; (9)EAS: 1500 mJ; (10)dv/dt IS ≤ IDM, di/dt ≤ 100 A/μs, VDD ≤ VDSS, TJ ≤ 150°C, RG = 2 Ω: 5 V/ns; (11)PD TC = 25°C: 416 W; (12)TJ: -55 to + 150 °C; (13)TJM: 150 °C; (14)Tstg: -55 to + 150 °C; (15)TL 1.6 mm (0.063 in)from case for 10 s: 300 °C; (16)Md Mounting torque: 1.13/10 Nm/lb.in.; (17)Weight: TO-247 6 g; TO-268 4 g.

Features

IXFT32N50Q features: (1)IXYS advanced low Qg process; (2)Low gate charge and capacitances: Easier to drive; Faster switching; (3)International standard packages; (4)Low RDS (on); (5)Unclamped Inductive Switching (UIS)rated; (6)Molding epoxies meet UL 94 V-0 flammability classification.
