Product Summary
The is42s16100a1-7t is a synchronous dynamic RAM. The is42s16100a1-7t is organized as a 524,288-word x 16-bit x 2-bank for improved performance. The is42s16100a1-7t achieves high-speed data transfer using pipeline architecture. All inputs and outputs signals of the is42s16100a1-7t refer to the rising edge of the clock input.
Parametrics
is42s16100a1-7t absolute maximum ratings: (1) Maximum Supply Voltage VDDMAX: -1 to +4.6V; (2) Maximum Supply Voltage for Output Buffer VDDQ Max: -1 to +4.6V; (3) Input Voltage VIN: -1 to +4.6V; (4) Output Voltage VOUT: -1 to +4.6V; (5) Allowable Power Dissipation PD MAX: 1W; (6) Output Shorted Current Ics: 50mA; (7) Operating Temperature: 0 to 70°C; (8) Storage Temperature TSTG: -55 to +150°C.
Features
is42s16100a1-7t features: (1) Clock frequency: 166, 143, 100 MHz; (2) Fully synchronous; all signals referenced to a positive clock edge; (3) Two banks can be operated simultaneously and independently; (4) Dual internal bank controlled by A11 (bank select) ; (5) Single 3.3V power supply; (6) Burst read/write and burst read/single write operations capability; (7) Burst termination by burst stop and precharge command; (8) Byte controlled by LDQM and UDQM; (9) Package 400-mil 50-pin TSOP II; (10) Lead-free package option.

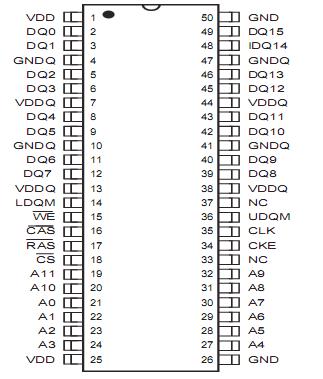

Diagrams
