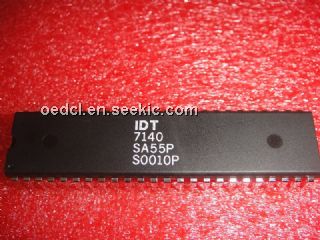

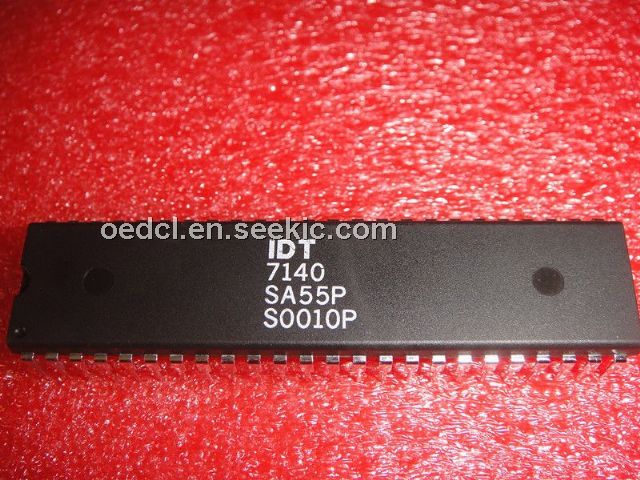

IDT7140SA55P

high-speed, 1K x 8 Dual-Port Static RAM, TQFP-64, –0.5 to +7.0V, 50mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.80~6.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	6.00 / Piece
20 ~ 100 :	5.80 / Piece

PartNumber:: IDT7140SA55P

Brand:: Integrated Device Technology - IDT | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-14

From Other Seller

Part Number:IDT7140SA55P
US $5.80 - 6.00
Quantity:

piece

Product Summary

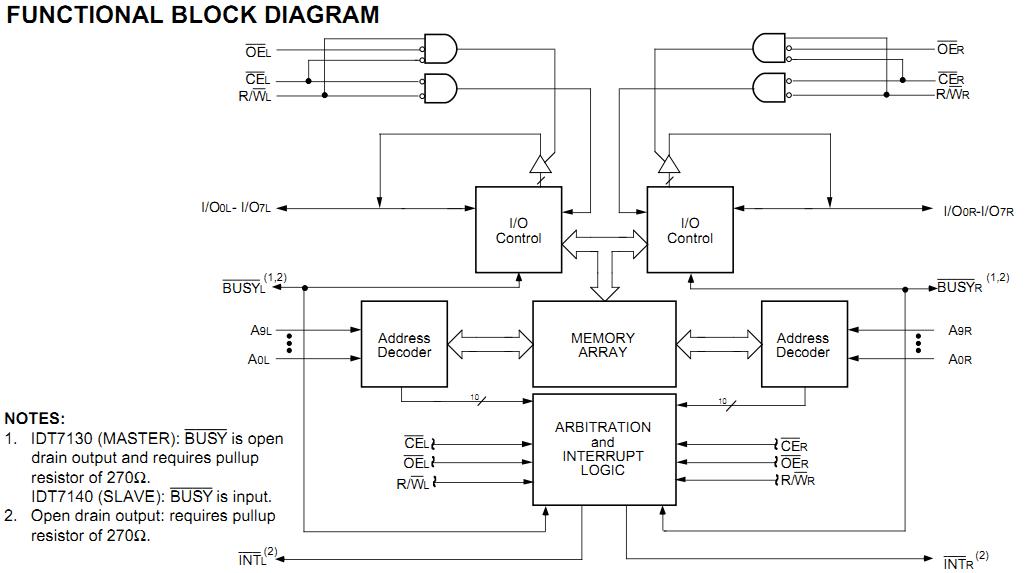

The IDT7140SA55P is a high-speed 1K x 8 Dual-Port Static RAM. The device is designed to be used as a stand-alone 8-bit Dual-Port RAM or as a MASTER Dual-Port RAM together with the IDT7140SA55P SLAVE Dual-Port in 16-bit-or-more word width systems. Using the IDT MASTER/SLAVE Dual-Port RAM approach in 16-or-more-bit memory system applications results in full-speed, error-free operation without the need for additional discrete logic. The IDT7140SA55P provides two independent ports with separate control, address, and I/O pins that permit independent asynchronous access for reads or writes to any location in memory. An automatic power down feature, controlled by CE, permits the on chip circuitry of each port to enter a very low standby power mode.

Parametrics

IDT7140SA55P absolute maximum ratings: (1)VTERM, Terminal Voltage with Respect to GND: –0.5 to +7.0V; (2)TA, Operating Temperature: 0 to +70℃; (3)TBIAS, Temperature Under Bias: –55 to +125℃; (4)TSTG, Storage Temperature:–55 to +125℃; (5)IOUT, DC Output Current: 50mA.

Features

IDT7140SA55P features: (1)High-speed access: Military: 25/35/55/100ns (max.); Commercial: 25/35/55/100ns (max.); Commercial: 20ns 7130 in PLCC and TQFP; (2)Low-power operation; (3)MASTER IDT7130 easily expands data bus width to; (4)16-or-more-bits using SLAVE IDT7140; (5)On-chip port arbitration logic (IDT7130 Only); (6)BUSY output flag on IDT7130; BUSY input on IDT7140; (7)Interrupt flags for port-to-port communication; (8)Fully asynchronous operation from either port; (9)Battery backup operation–2V data retention (LA only); (10)TTL-compatible, single 5V ±10% power supply; (11)Military product compliant to MIL-STD-883, Class B; (12)Standard Military Drawing #5962-86875; (13)Industrial temperature range (–40 to +85℃) is available, tested to military electrical specifications.
