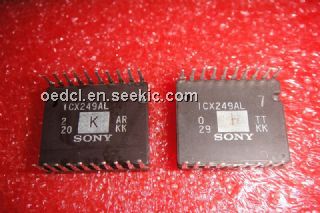

ICX249AL

interline CCD solid-state image sensor, 60Ω, 30V, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $39.00~40.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 5 :	40.00 / Piece
6 ~ 10 :	39.00 / Piece

PartNumber:: ICX249AL

Brand:: Sony Corporation - SONY | Pack: DIP | D/C: 06+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-17

From Other Seller

Part Number:ICX249AL
US $39.00 - 40.00
Quantity:

piece

Product Summary

The icx249al is an interline CCD solid-state image sensor suitable for CCIR black-and-white video cameras with a diagonal 8mm (Type 1/2) system. Sensitivity, smear, D-range, S/N and other characteristics from visible light area to near infrared light area, have been greatly improved compared with the The icx249al through the adoption of EXview HAD CCD technology. The icx249al features a field period readout system and an electronic shutter with variable charge-storage time.

Parametrics

icx249al absolute maximum ratings: (1) Substrate clock-GND: -0.3 to 5V; (2) Supply voltageVDD, VRD, VDSUB, VOUT, VSS-GND: -0.3 to 18V, VDD, VRD, VDSUB, VOUT, VSS-SUB: -55 to 10V; (3) Voltage difference between vertical clock input pins: to +15V; (4) Voltage difference between horizontal clock input pins: to +17V; (5) Pins other than GND and SUB-VL: -0.3 to +30V; (6) Storage temperature: -30 to 80°C; (7) Operating temperature: -10 to +60°C.

Features

icx249al features: (1) Sensitivity in the near infrared light area; (2) High sensitivity; (3) High resolution and low dark current; (4) Excellent antiblooming characteristics; (5) Continuous variable-speed shutter; (6) Substrate bias: Adjustment free (external adjustment also possible with 6 to 14V; (7) Reset gate pulse: 5Vp-p adjustment free (drive also possible with 0 to 9V) ; (8) Horizontal register: 5V drive.
