Product Summary
The ICE3B0365J is an Off-Line SMPS Current Mode Controller. By use of a BiCMOS technology a wide VCC range up to 26V is provided. This covers the changes in the auxiliary supply voltage if a CV/CC regulation is implemented on the secondary side. Furthermore an Active Burst Mode is integrated to fullfill the lowest Standby Power Requirements <100mW at no load and Vin = 270VAC. As during Active Burst Mode the controller is always active there is an immediate response on load jumps possible without any black out in the SMPS.
Parametrics
ICE3B0365J absolute maximum ratings: (1)Drain Source Voltage(Tj=110°C) VDS: 650V; (2)VCC Supply Voltage VVCC: -0.3V to +27V; (3)FB Voltage VFB: -0.3V to +5.0V; (4)SoftS Voltage VSoftS: -0.3V to +5.0V; (5)CS Voltage VCS: -0.3V to +5.0V; (6)Junction Temperature Tj: -40℃ to +150℃; (7)Storage Temperature TS: -55℃ to +150℃.
Features
ICE3B0365J features: (1)650V Avalanche Rugged CoolMOS? with built in switchable Startup Cell; (2)Active Burst Mode for lowest Standby Power @ light load controlled by Feedback Signal; (3)Fast Load Jump Response in Active Burst Mode; (4)67 kHz fixed Switching Frequency; (5)Auto Restart Mode for Over temperature Detection; (6)Auto Restart Mode for Overvoltage Detection; (7)Auto Restart Mode for Overload and Open Loop; (8)Auto Restart Mode for VCC Undervoltage; (9)User defined Soft Start; (10)Minimum of external Components required; (11)Max Duty Cycle 75%.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

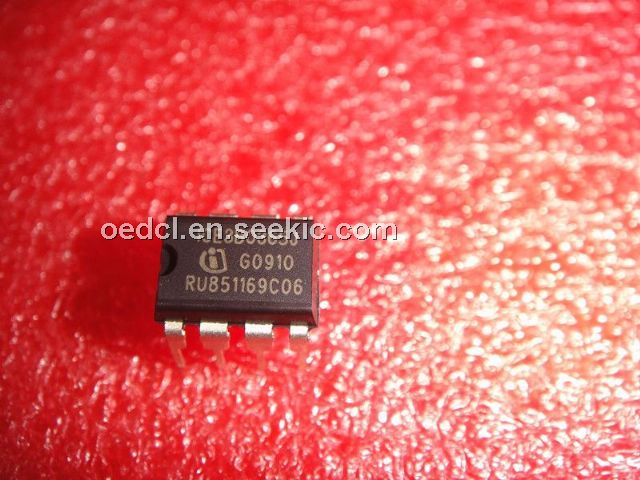

 ICE3B0365J |
Infineon Technologies |
Current Mode PWM Controllers Off-Line SMPS Currnt Mode CTRLR 650V |
Data Sheet |
|
|
||||||||||||
|
ICE3B0365JG |
Infineon Technologies |
Current Mode PWM Controllers Off-Line SMPS Currnt Mode CTRLR 650V |
Data Sheet |
|
|
||||||||||||
|
ICE3B0365JZ |
Infineon Technologies |
Current Mode PWM Controllers COOLSET IC CUR-MODE PWM CTRLR 650V |
Data Sheet |
Negotiable |
|
||||||||||||
