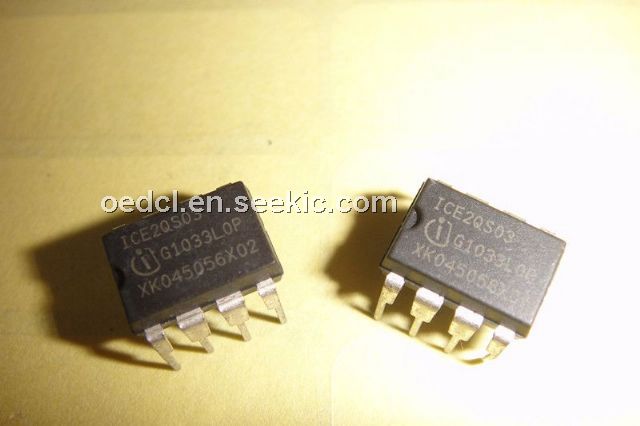

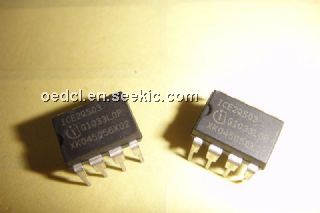

ICE2QS03

Quasi-Resonant PWM Controller, DIP, -0.3V to 27V, Infineon Technologies AG, 3mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.80~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	1.00 / Piece
200 ~ 1000 :	0.80 / Piece

PartNumber:: ICE2QS03

Brand:: eupec GmbH - infineon | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-17

From Other Seller

Part Number:ICE2QS03
US $0.80 - 1.00
Quantity:

piece

Product Summary

The ICE2QS03 is a Quasi-Resonant PWM Controller. It is a quasi-resonant PWM controller optimized for off-line switch power supply applications such as LCD TV, CRT TV and notebook adapter. The digital frequency reduction with decreasing load enables a quasi-resonant operation till very low load. As a result, the overall system efficiency is significantly improved compared to other conventional solutions. The active burst mode operation enables an ultra-low power consumption at standby mode with small and controllable output voltage ripple. Based on the BiCMOS technology, the ICE2QS03 has a wide operation range (up to 26V) of IC power supply and lower power consumption. The numerous protection functions give a full protection of the power supply system in failure situations. All of these make the ICE2QS03 an outstanding controller for quasi-resonant flyback converter in the market.

Parametrics

ICE2QS03 absolute maximum ratings: (1)HV Voltage: 500V; (2)VCC Supply Voltage: -0.3 to 27V; (3)FB Voltage: -0.3 to 5.0V; (4)ZC Voltage: -0.3 to 5.0V; (5)CS Voltage: -0.3 to 5.0V; (6)GATE Voltage: -0.3 to 27V; (7)Maximum current out from ZC pin: 3mA; (8)Junction Temperature: -40 to 150℃; (9)Storage Temperature: -55 to 150℃.

Features

ICE2QS03 features: (1)Active burst mode operation at light/no load for low standby input power (< 100mW); (2)Digital frequency reduction with decreasing load; (3)Power cell for VCC pre-charging with constant current; (4)Built-in digital soft-start; (5)Foldback correction and cycle-by-cycle peak current limitation; (6)Auto restart mode for VCC Overvoltage protection; (7)Auto restart mode for VCC Undervoltage protection; (8)Auto restart mode for openloop/overload protection; (9)Latch-off mode for adjustable output overvoltage protection; (10)Latch-off mode for Short-winding protection.
