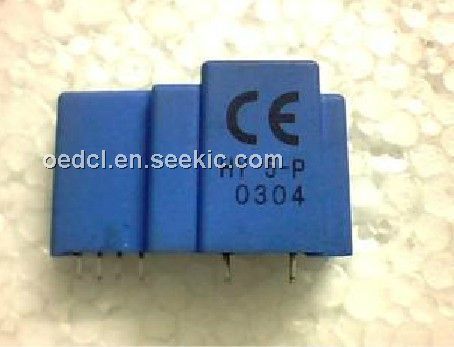

Product Summary
The HY5-P is a current transducer. Applications are (1)General purpose inverters; (2)AC variable speed drives; (3)Static converters for DC motor drives; (4)Battery supplied applications; (5)Uninterruptible power supplies (UPS); (6)Switched mode power supplies (SMPS).
Parametrics
HY5-P absolute maximum ratings: (1)Supply voltage (± 5 %): ±12 to ±15 V; (2)Current consumption: ±10 mA; (3)Overload capability (1 ms): 50 x IPN; (4)R.m.s. voltage for AC isolation test, 50/60Hz, 1 mn: 2.5 kV; (5)R.m.s. rated voltage, safe separation: 500 V; (6)Isolation resistance @ 500 VDC: > 1000 Ω; (7)Output voltage @ ± IPN, RL = 10 kW, TA = 25°C: ±4 V; (8)Output internal resistance: 100 W; (9)Load resistance: > 1 kW.
Features
HY5-P features: (1)Hall effect measuring principle; (2)Galvanic isolation between primary and secondary circuit; (3)Isolation voltage 2500 V~; (4)Compact design for PCB mounting; (5)Low power consumption; (6)Extended measuring range (3 x IPN); (7)Insulated plastic case recognized according to UL 94-V0.

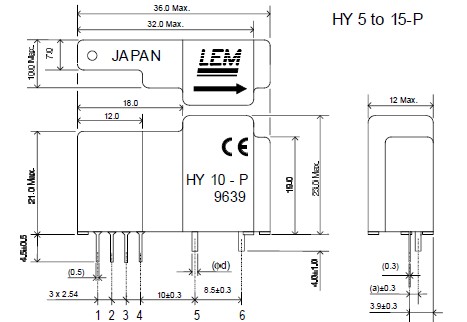

Diagrams
