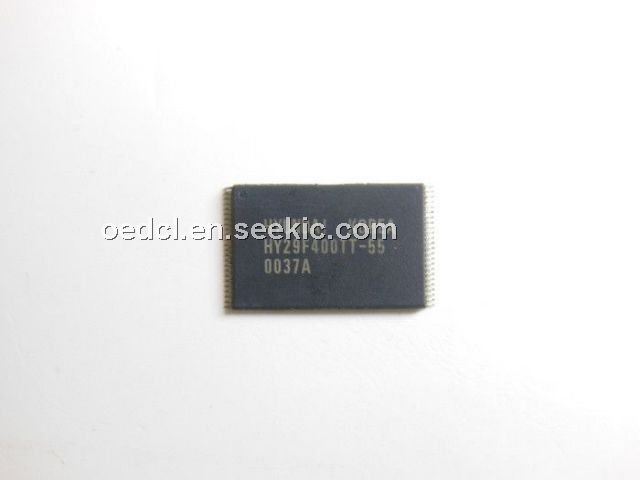

Product Summary

The HY29F400TT-55 is a 4 Megabit, 5 volt only CMOS Flash memory organized as 524,288 (512K) bytes or 262,144 (256K) words. The HY29F400TT-55 is offered in industry-standard 44-pin PSOP and 48-pin TSOP packages. The HY29F400TT-55 can be programmed and erased in-system with a single 5-volt VCC supply. Internally generated and regulated voltages are provided for program and erase operations, so that the device does not require a high voltage power supply to perform those functions. The HY29F400TT-55 can also be programmed in standard EPROM programmers.

Parametrics

HY29F400TT-55 absolute maximum ratings: (1)Storage Temperature: -65 to +125°C; (2)Ambient Temperature with Power Applied: -55 to +125°C; (3)Voltage on Pin with Respect to VSS: VCC: -2.0 to +7.0V, A[9], OE#, RESET#: -2.0 to +12.5V, All Other Pins: -2.0 to +7.0V; (4)IOS Output Short Circuit Current: 200mA.

Features

HY29F400TT-55 features: (1)5 Volt Read, Program, and Erase; (2)High Performance; (3)Low Power Consumption; (4)Compatible with JEDEC Standards; (5)Sector Erase Architecture; (6)Erase Suspend/Resume; (7)Sector Protection; (8)Temporary Sector Unprotect; (9)Internal Erase Algorithm; (10)Internal Programming Algorithm; (11)Fast Program and Erase Times; (12)Data# Polling and Toggle Status Bits; (13)Ready/Busy# Output (RY/BY#); (14)100,000 Program/Erase Cycles Minimum; (15)Space Efficient Packaging.

Diagrams

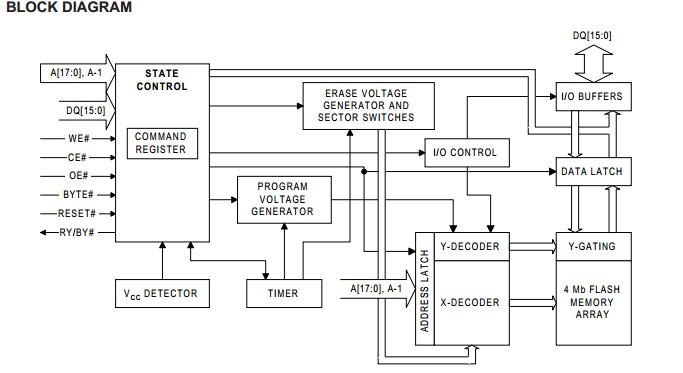

HY29F400TT-55 block diagram
