Product Summary

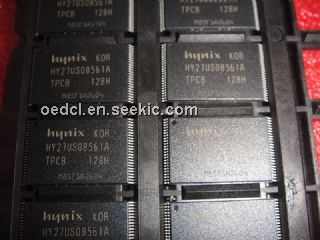

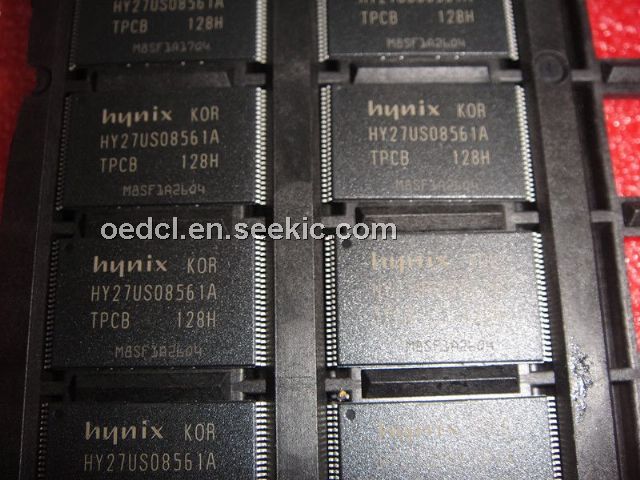

The HY27US08561A is a 32Mx8bit NAND Flash with spare 8Mx16 bit capacity. The device is offered in 1.8V Vcc Power Supply and in 3.3V Vcc Power Supply. Its NAND cell provides the most cost-effective solution for the solid state mass storage market. The memory is divided into blocks that can be erased independently so it is possible to preserve valid data while old data is erased. The HY27US08561A contains 2048 blocks, composed by 32 pages consisting in two NAND structures of 16 series connected Flash cells.
Parametrics
HY27US08561A absolute maximum ratings: (1)Ambient Operating Temperature (Commercial Temperature Range): 0 to 70℃; (2)Ambient Operating Temperature (Extended Temperature Range): -25 to 85℃; (3)Ambient Operating Temperature (Industrial Temperature Range): -40 to 85℃; (4)Temperature Under Bias: -50 to 125℃; (5)Storage Temperature: -65 to 150℃; (6)Input or Output Voltage: -0.6 to 2.7V; (7)Supply Voltage: -0.6 to 2.7V.
Features
HY27US08561A features: (1)high density NAND flash memories; (2)NAND interface; (3)fast block erase; (4)status register; (5)electronic signature; (6)automatic page 0 read at power-up option; (7)serial number option; (8)hardware data protection.

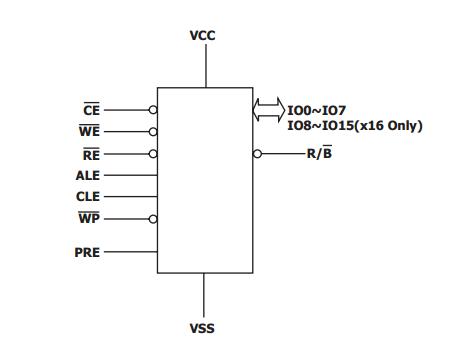

Diagrams
