Product Summary

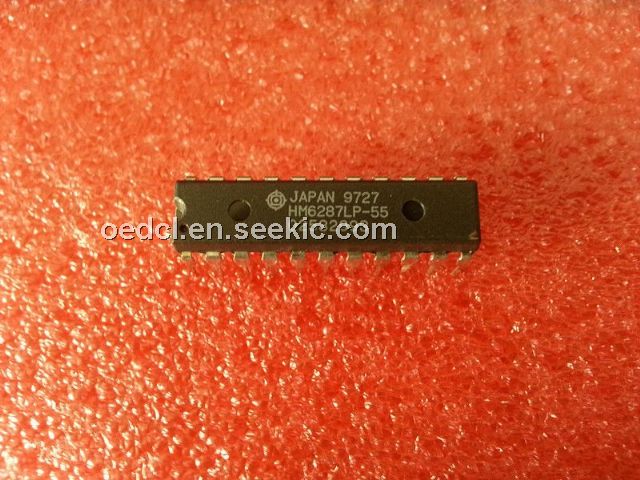

The HM6287LP-55 is a 5536-word x 1-bit Speed CMOS Static RMA.
Parametrics
HM6287LP-55 absolute maximum ratings: (1)voltage on any pin relative to VSS: -0.5 to +7.0V; (2)power dissipation: 1.0W; (3)operatings temperature: 0 to +70℃; (4)storage temperature: -55 to +125℃; (5)temperature under bias: -10 to +85℃.
Features
HM6287LP-55 features: (1)high speed; (2)single 5V supply and high density 22 pin package; (3)low power satdby and low power operation; (4)completely static memory; (5)equal access and cycle times; (6)directly TTL compatible: all inputs and output; (7)capability of battery back up operation(L-version).

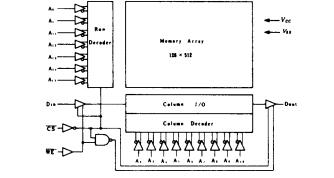

Diagrams
