Product Summary

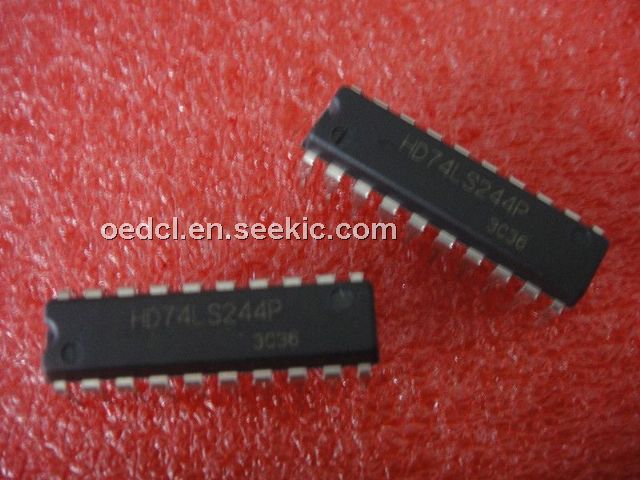

The HD74LS244P is an octal buffer. Its package type is DIPL-20 pin. It has non inverted three-state outputs.
Parametrics
HD74LS244P absolute maximum ratings: (1)Supply voltage, VCC: 7V; (2)Input voltage, VIN: 7V; (3)Power dissipation, PT: 400mW; (4)Storage temperature, Tstg: –65 to +150℃.
Features
HD74LS244P electrical Characteristics: (1)Input voltage: VIH: 2.0V min; VIL: 0.8V max; (2)short-circuit output curretn, Ios: -40 to -225mA, condition: Vcc=5.25V; (3)input clamp voltage, Vik: -1.5V max, condition: Vcc=4.75V, IIN=-18mA.

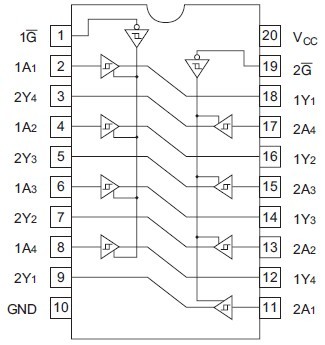

Diagrams
