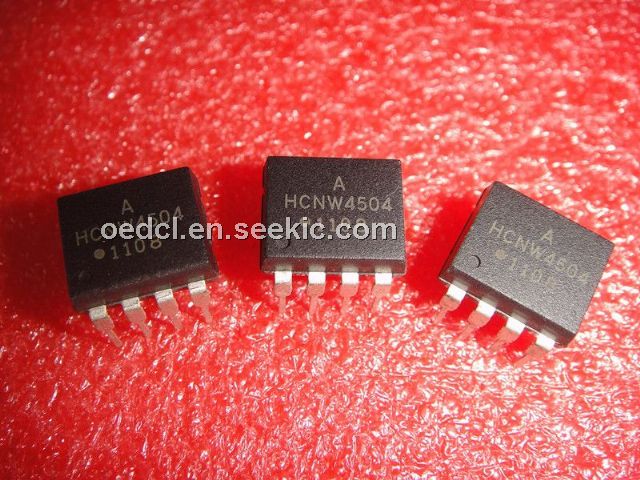

HCNW4504

HCNW4504, optocoupler, 25 mA, 5 V, 100 mW, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.70~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	2.00 / Piece
20 ~ 100 :	1.70 / Piece

PartNumber:: HCNW4504

Brand:: AVAGO TECHNOLOGIES LIMITED - Avago | Pack: DIP | D/C: 07+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-08

From Other Seller

Part Number:HCNW4504
US $1.70 - 2.00
Quantity:

piece

Product Summary

The HCNW4504 is a high CMR, high speed optocoupler. It contains a GaAsP LED. The LED is optically coupled to an integrated high gain photo detector. The HCNW4504 has short propagation delays and high CTR. It also has a guaranteed propagation delay difference (tPLH-tPHL). These features make the HCNW4504 an excellent solution to IPM inverter dead time and other switching problems. The applications of the HCNW4504 include line receivers, short propagation delays and low input-output capacitance, high speed logic ground isolation, TTL/TTL, TTL/CMOS, TTL/LSTTL, replaces pulse transformers, save board space and weight.

Parametrics

HCNW4504 absolute maximum ratings: (1)Storage temperature: -55 to 125 ℃; (2)Operating temperature: -55 to 100 ℃; (3)Average forward input current: 25 mA; (4)Peak forward input current (50% duty cycle, 1 ms pulse width): 50 mA; (5)Peak transient input current (≤1 μs pulse width, 300 pps): 1 A; (6)Reverse LED input voltage (Pin 3-2): 5 V; (7)Input power dissipation: 45 mW; (8)Average output current (pin 6): 8 mA; (9)Peak output current: 16 mA; (10)Supply voltage (pin 8-5): -0.5 to 30 V; (11)Output voltage (pin 6-5): -0.5 to 20 V; (12)Output power dissipation: 100 mW; (13)Lead solder temperature (through-hole parts only) 1.6 mm below seating plane, 10 seconds: 260 ℃.

Features

HCNW4504 features: (1)Short propagation delays for TTL and IPM applications; (2)15 kV/μs minimum common mode transient immunity; (3)at V CM = 1500 V for TTL/load drive; (4)High CTR at TA = 25℃: >25% for HCPL-4504/0454, >23% for HCNW4504, >19% for HCPL-J454; (5)Electrical specifications for common IPM applications; (6)TTL compatible; (7)Open collector output; (8)Safety approval: UL recognized: 3750 V rms/1min. for HCPL-4504/0454/J454, 5000 V rms/1min. for HCPL-4504 Option 020 and HCNW4504.
