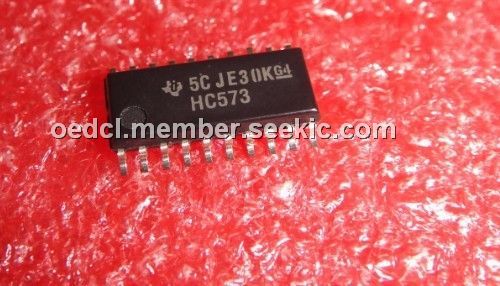

Product Summary

The HC573 is an octal 3-state noninverting transparent latch. The HC573 is identical in pinout to the LS/ALS573. The HC573 inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALSTTL outputs. These latches appear transparent to data (i.e., the outputs change asynchronously) when Latch Enable is high. When Latch Enable goes low, data meeting the setup and hold time becomes latched.

Parametrics

HC573 absolute maximum ratings: (1)VCC DC Supply Voltage (Referenced to GND): -0.5 to +7.0 V; (2)VIN DC Input Voltage (Referenced to GND): -1.5 to VCC +1.5 V; (3)VOUT DC Output Voltage (Referenced to GND): -0.5 to VCC +0.5 V; (4)IIN DC Input Current, per Pin: ±20 mA; (5)IOUT DC Output Current, per Pin: ±35 mA; (6)ICC DC Supply Current, VCC and GND Pins: ±75 mA; (7)PD Power Dissipation in Still Air, Plastic DIP: 759mW, SOIC Package: 500 mW; (8)Tstg Storage Temperature: -65 to +150 ℃; (9)TL Lead Temperature, 1 mm from Case for 10 Seconds (Plastic DIP or SOIC Package): 260 ℃.

Features

HC573 features: (1)Outputs Directly Interface to CMOS, NMOS, and TTL; (2)Operating Voltage Range: 2.0 to 6.0 V; (3)Low Input Current: 1.0 mA; (4)High Noise Immunity Characteristic of CMOS Devices.

Diagrams

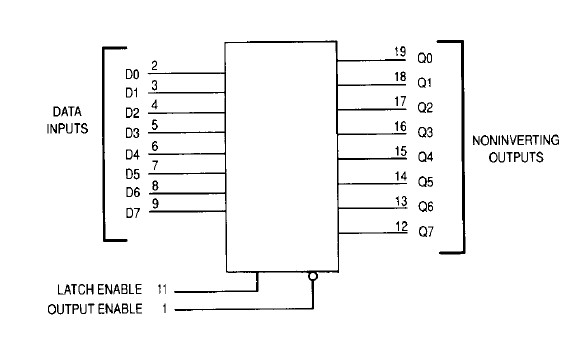

HC573 pin connection
