Product Summary

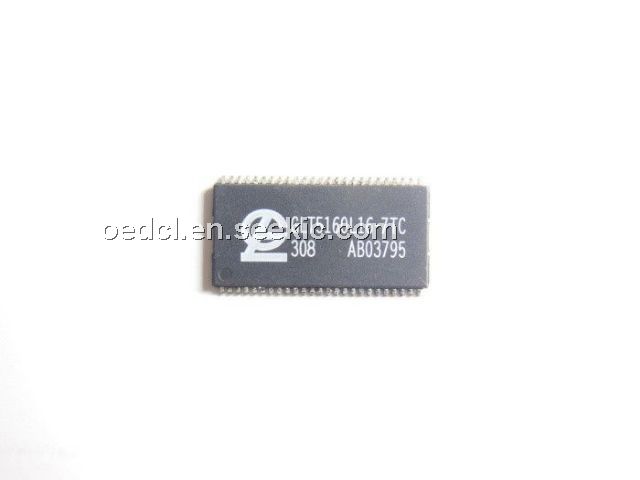

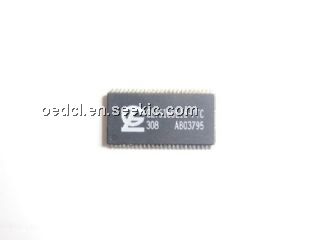

The glt5160l16-7tc is a 2-bank x 524288-word x 16-bit Synchronous DRAM, with LVTTL interface. All inputs and outputs of the glt5160l16-7tc are referenced to the rising edge of CLK. The glt5160l16-7tc achieves very high speed data rate up to 166 MHz, and the t5160l16-7tc is suitable for main memory or graphic memory in computer systems.
Parametrics
glt5160l16-7tc absolute maximum ratings: (1) Supply Voltage VDD: -1 to 4.6V (Conditionswith respect to VSS) ; (2) Supply Voltage for Output VDDQ: -1 to 4.6V (with respect to VSSQ) ; (3) Input Voltage VI: -1 to 4.6V (with respect to VSS) ; (4) Output Voltage VO: -1 to 4.6V (with respect to VSSQ) ; (5) Output Current Io: 50mA; (6) Power Dissipation Pd: 1000mW (TA=25°C) ; (7) Operating Temperature: 0 to 70°C (comsumer) , -40 to 85°C (Industrial) ; (8) Storage Temperature Tstg: -65 to 150°C.
Features
glt5160l16-7tc features: (1) Single 3.3 V±0.3 V power supply; (2) Clock frequency 100 MHz / 125 MHz / 143 MHz/ 166 MHz; (3) Fully synchronous operation referenced to clock rising edge; (4) Dual bank operation controlled by BA (Bank Address) ; (5) CAS latency- 2 / 3 (programmable) ; (6) Industrial grade available; (7) Byte control by DQMU and DQML; (8) 4096 refresh cycles / 64 ms; (9) 400-mil, 50-Pin Thin Small Outline Package (TSOP II) with 0.8 mm lead pitch; (10) 60-Ball, 6.4mmx10.1mm VFBGA package with 0.65mm Ball pitch & 0.35mm Ball diameter.

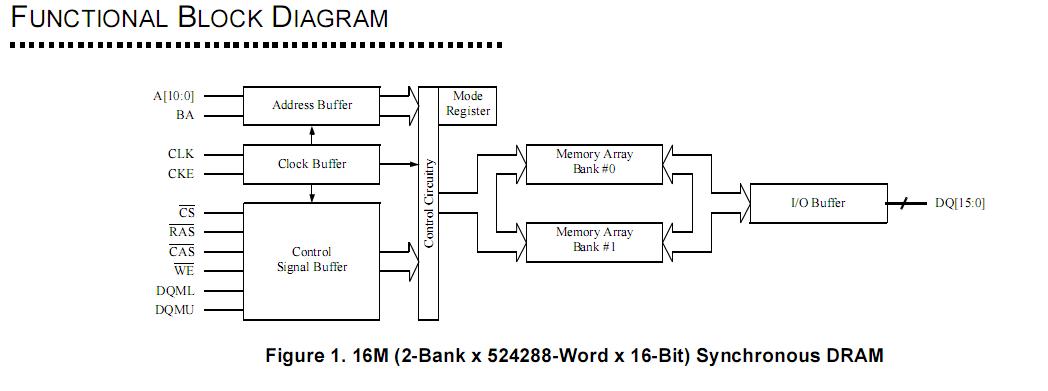

Diagrams
