Product Summary

The FT245BL is a USB FIFO (USB-Parallel) I.C., it provides an easy cost-effective method of transferring data to / from a peripheral and a host P.C. at up to 8 Million bits (1 Megabyte) per second. Its simple, FIFO-like design makes it easy to interface to any microcontroller or microprocessor via IO ports.To send data from the peripheral to the host computer, simply write the byte-wide data into the module when TXE# is low. If the (384-byte) transmit buffer fills up or is busy storing the previously written byte, the device keeps TXE# high in order to stop further data from being written until some of the FIFO data has been transferred over USB to the host.

Parametrics

FT245BL absolute maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)Floor Life (Out of Bag) at Factory Ambient(30/60% Relative humidity): 192 Hours (Level 3 Compliant); (3)Ambient Temperature (Power Applied): 0℃ to + 70℃; (4)M.T.B.F. (at 35): 247484 Hours ≈ 28 Years; (5)VCC Supply Voltage: -0.5V to +6.00V; (6)DC Input Voltage-Inputs: -0.5V to +(VCC + 0.5)V; (7)DC Output Current–Outputs: 24mA; (8)Power Dissipation (VCC = 5.25V): 500mW.

Features

FT245BL features: (1)Transfer Data rate to 1M Byte / Sec - D2XX Drivers ; (2)Transfer Data rate to 300 Kilobyte / Sec - VCP Drivers ; (3)Simple to interface to MCU / PLD/ FPGA logic with a 4 wire handshake interface; (4)FTDI`s royalty-free VCP and D2XX drivers eliminate the requirement for USB driver development in most cases.; (5)384 Byte FIFO Tx buffer / 128 Byte FIFO Rx Buffer for high data throughput.; (6)USB VID, PID , Serial Number and Product Description strings in external EEPROM.

Diagrams

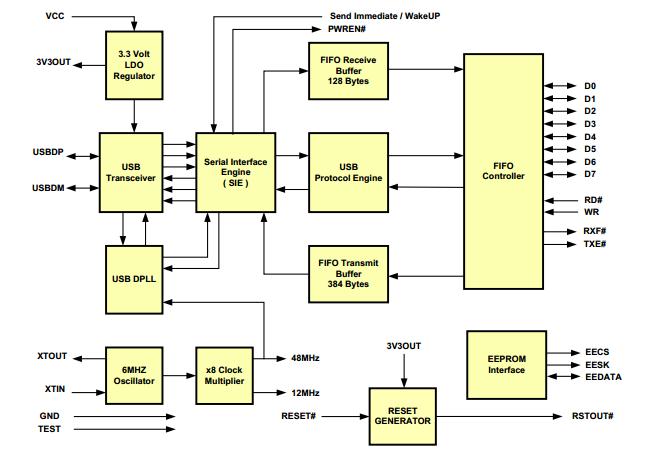

FT245BL block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
FT245BL
FT245BL

Other


Data Sheet

Negotiable
FT245BL-REEL
FT245BL-REEL

FTDI

USB Interface IC USB to Parallel FIFO IC LQFP-32

Data Sheet

0-1: $3.45
1-10: $2.97
10-50: $2.76
50-100: $2.55
