Product Summary

The fdp3652 is an N-channel power trench mosfet. Applications of the fdp3652 include: DC/DC Converters and Off-line UPS, Distributed Power Architectures and VRMs, Primary Switch for 24V and 48V Systems, High Voltage Synchronous Rectifier, Direct Injection / Diesel Injection Systems, 42V Automotive Load Control and Electronic Valve Train Systems.

Parametrics

fdp3652 absolute maximum ratings: (1) Drain to Source Voltage VDSS: 100V; (2) Gate to Source Voltage VGS: ±20V; (3) Drain Current Continuous (Tc=25°C, VGS=10V) : 61A; Continuous (Tc=100°C, VGS=10V) : 43A, Continuous (T
amb=25°C, VGS=10V) with RθJA=43°C/W) : 9A; (4) Single Pulse Avalanche Energy: 182mJ; (5) Power dissipation: 150W; (6) Derate above 25°C: 1W/°C; (7) Operating and Storage Temperature Tj, Tstg: -55 to 175°C.

Features

fdp3652 features: (1) rDS (ON)=14mΩ (Typ.) , VGS=10V, ID=61A; (2) Qg (tot)=41nC (Typ.) , VGS=10V; (3) Low Miller Charge; (4) Low QRR Body Diode; (5) UIS Capability (Single Pulse and Repetitive Pulse) ; (6) Qualified to AEC Q101.

Diagrams

FDP3652 circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

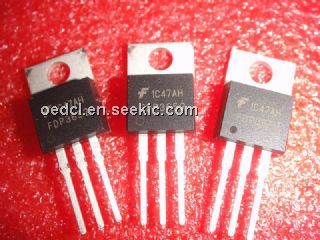

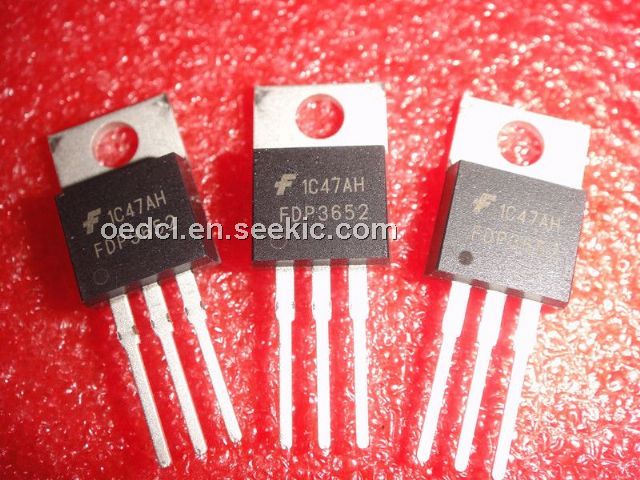

FDP3652
FDP3652
Fairchild Semiconductor
MOSFET 100V 61a 0.016 Ohm
Data Sheet
0-1: $1.67
1-25: $1.35
25-100: $1.22
100-250: $1.08
FDP3652_Q
FDP3652_Q
Fairchild Semiconductor
MOSFET 100V 61a 0.016 Ohm
Data Sheet
Negotiable
