Product Summary

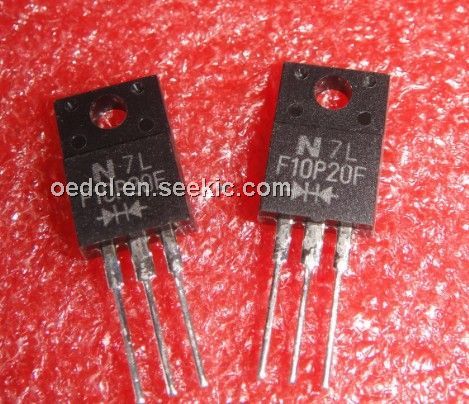

The F10P20F is a Fast Recovery Diode.
Parametrics
F10P20F absolute maximum ratings: (1)Repetitive Peak Reverse Voltage : 200 V; (2)Non-repetitive Peak Reverse Voltage : 220 V; (3)Average Rectified Output Current : 10 A; (4)RMS Forward Current IF(RMS) : 11.1 A; (5)Surge Forward Current : 80 A; (6)Operating Junction Temperature Range : - 40 to + 150 ℃; (7)Storage Temperature Range : - 40 to + 150 ℃.
Features
F10P20F features: (1)Fully Molded Isolation; (2)Dual Diodes – Anode Common; (3)Ultra – Fast Recovery; (4)Low Forward Voltage Drop; (5)High Surge Capability; (6)200 Volts thru 600 Volts Types Available.

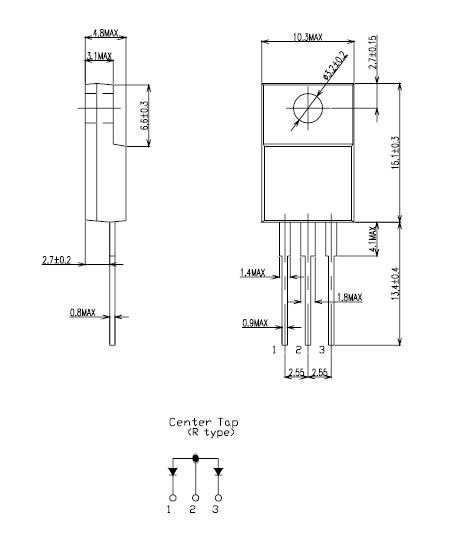

Diagrams
