Product Summary

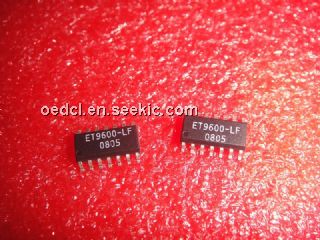

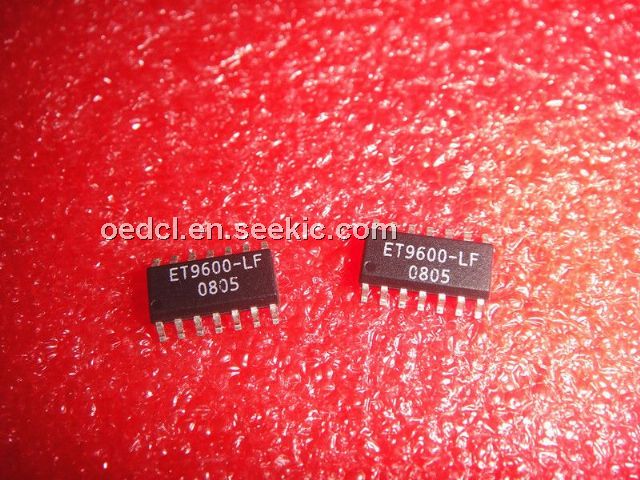

The ET9600-LF is a line driver. It is similar to the four channel 26ET31, with the added feature of providing an internal LED drive. The ET9600-LF is biased so that the base of the LED drive transistor (shown) is held at 2.5V. To set the LED current, connect a resistor from RSET to ground. For more information on LED drive, see application note APP-D2. Voltage connected to the VCC pin is regulated for use by logic functions within the chip, while the output drivers run off this voltage without modification. The ET9600-LF marking (see photo) includes the suffix SCP to denote that this version has short circuit protection. Applications are (1)Optical encoders; (2)Industrial controls.

Parametrics

ET9600-LF absolute maximum ratings: (1)Operating temperature range TA: -40 to 125 °C; (2)Supply voltage range VCC: 4.5 to 30 V.

Features

ET9600-LF features: (1)Supply voltage range 4.5V to 30V; (2)Operation to 800KHz; (3)CMOS and TTL compatible inputs; (4)Outputs RS-422A compatible; (5)High impedance buffered inputs with hysteresis; (6)Outputs short circuit protected; (7)70mA peak SINK/SOURCE current; (8)Outputs protected by thermal shut-down.

Diagrams

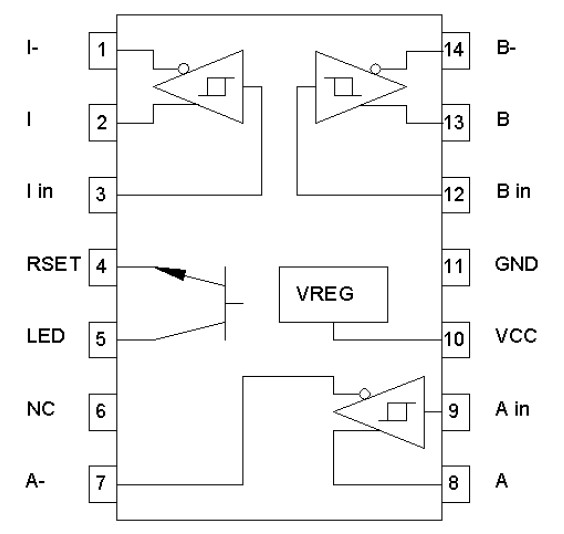

ET9600-LF pin connection
