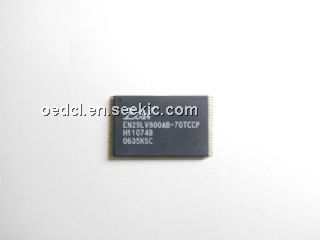

Product Summary
The EN29LV800AB-70TCCP is an 8-Megabit, electrically erasable, read/write non-volatile flash memory, organized as 1,048,576 bytes or 524,288 words. Any byte can be programmed typically in 8µs. The EN29LV800AB-70TCCP features 3.0V voltage read and write operation, with access time as fast as 55ns to eliminate the need for WAIT statements in high-performance microprocessor systems. The EN29LV800AB-70TCCP has separate Output Enable (OE#), Chip Enable (CE#), and Write Enable (WE#) controls, which eliminate bus contention issues. This device is designed to allow either single Sector or full chip erase operation, where each sector can be individually protected against program/erase operations or temporarily unprotected to erase or program.
Parametrics
EN29LV800AB-70TCCP absolute maximum ratings: (1)Storage Temperature: -65 to +125°C; (2)Plastic Packages: -65 to +125°C; (3)Ambient Temperature With Power Applied: -55 to +125°C; (4)Output Short Circuit Current: 200mA; (5)Voltage with Respect to Ground: A9, OE#, Reset#: -0.5 to +11.5 V, All other pins: -0.5 to Vcc+0.5V, Vcc: -0.5 to +4.0V.
Features
EN29LV800AB-70TCCP features: (1)Single power supply operation: Full voltage range: 2.7-3.6 volt read and write operations for battery-powered applications, Regulated voltage range: 3.0-3.6 volt read and write operations and for compatibility with high performance 3.3 volt microprocessors; (2)Manufactured on 0.18 um triple-metal double poly triple-well CMOS Flash Technology; (3)High performance: Access times as fast as 55 ns; (4)Low power consumption (typical values at 5 MHz); (5)7 mA typical active read current; (6)15 mA typical program/erase current; (7)1 uA typical standby current (standard access time to active mode); (8)Flexible Sector Architecture: One 16-Kbyte, two 8-Kbyte, one 32-Kbyte, and fifteen 64 Kbyte sectors (byte mode), One 8-Kword, two 4-Kword, one 16-Kword and fifteen 32-Kword sectors (word mode); (9)Sector protection: Hardware locking of sectors to prevent program or erase operations within individual sectors.

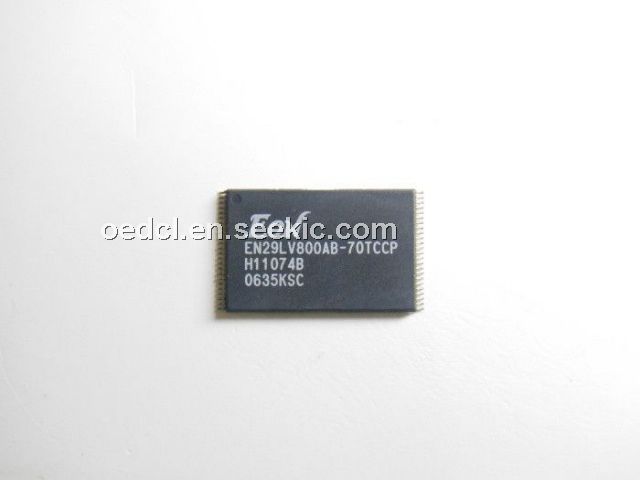

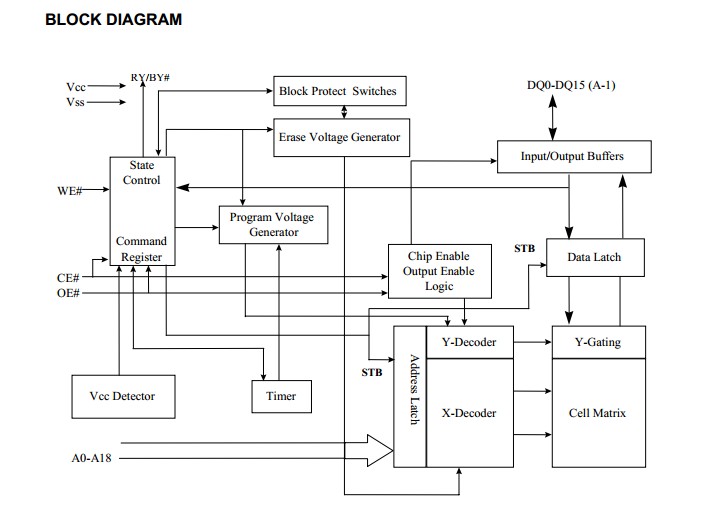

Diagrams
