Product Summary
The DSEC60-03A is a hiper FREDTM epitaxial diode with common cathode and soft recovery. Applications are (1)Antiparallel diode for high frequency switching devices; (2)Antisaturation diode; (3)Snubber diode; (4)Free wheeling diode in converters and motor control circuits; (5)Rectifiers in switch mode power supplies (SMPS); (6)Inductive heating; (7)Uninterruptible power supplies (UPS); (8)Ultrasonic cleaners and welders.
Parametrics
DSEC60-03A absolute maximum ratings: (1)IFRMS: 70 A; (2)IFAVM TC = 145°C; rectangular, d = 0.5 TC = 135°C (AR-Version): 30 A; (3)IFSM TVJ = 45°C; tp = 10 ms (50 Hz), sine: 300 A; (4)EAS TVJ = 25°C; non-repetitive IAS = 3 A; L = 180 μH: 1.2 mJ; (5)IAR VA = 1.5·VR typ.; f = 10 kHz; repetitive: 0.3 A; (6)TVJ: -55 to +175 °C; (7)TVJM: 175 °C; (8)Tstg: -55 to +150 °C; (9)Ptot TC = 25°C: 165 W; (10)Md mounting torque: 0.8 to 1.2 Nm; (11)FC mounting force with clip: 20 to 120 N; (12)VISOL 50/60 Hz, RMS, t = 1 minute, leads-to-tab: 2500 V~; (13)Weight typical: 6 g.
Features
DSEC60-03A features: (1)International standard package; (2)Planar passivated chips; (3)Very short recovery time; (4)Extremely low switching losses; (5)Low IRM-values; (6)Soft recovery behaviour; (7)Epoxy meets UL 94V-0; (8)Version AR isolated and UL registered E153432.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

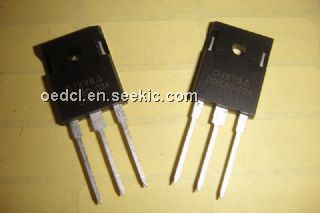

 DSEC60-03A |
|
DIODE HFRED 300V 30A TO-247AD |
Data Sheet |
Negotiable |
|
||||
 |
DSEC60-03AR |
|
DIODE HFRED 300V 30A ISOPLUS247 |
Data Sheet |
Negotiable |
|
||||
