Product Summary

The DG307ACJ is a CMOS Analog Switch. The DG307ACJ through DG307A series of monolithic CMOS switches were designed for applications in communications, instrumentation and process control. This series is well suited for applications requiring fast switching and nearly flat on-resistance over the entire analog range. It is deal for: (1)Low Level Switching Circuits; (2)Programmable Gain Amplifiers; (3)Portable and Battery Powered Systems.

Parametrics

DG307ACJ absolute maximum ratings: (1)Voltages Referenced to V– V+: 44 V; (2)GND: 25 V; (3)Digital Inputsa, VS, VD: (V–)–2 V to (V+)+2V or; (4)Current, Any Terminal: 30 mA; (5)Continuous Current, S or D (Pulsed at 1 ms, 10% duty cycle max): 100 mA; (6)Storage Temperature (AAA, AAK, ABK Suffix): –65 to 150°C; (ACJ Suffix): –65 to 125°C.

Features

DG307ACJ features: (1)15-V Input Range; (2)Fast Switching—tON: 110 ns; (3)Low rDS(on): 30 ; (4)Single Supply Operation; (5)CMOS Logic Levels; (6)Micropower: 30 nW.

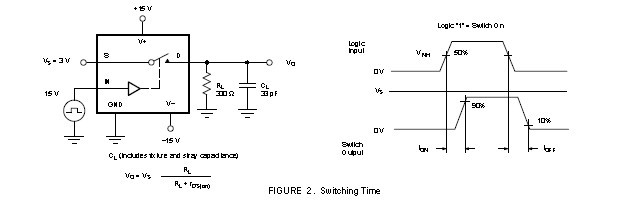

Diagrams

DG307ACJ pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

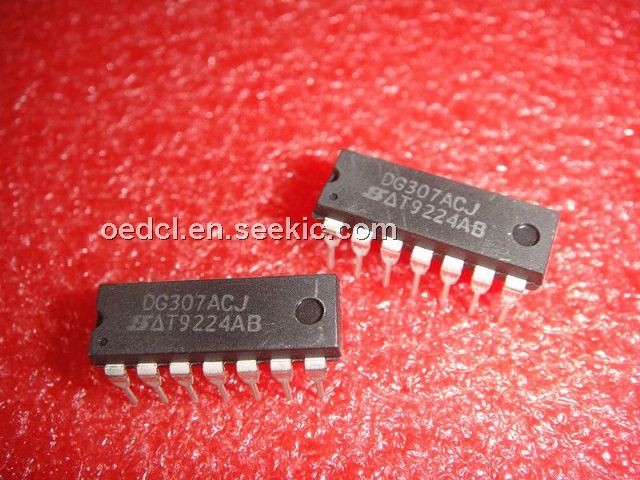

DG307ACJ
DG307ACJ
Maxim Integrated Products
Analog Switch ICs
Data Sheet
Negotiable

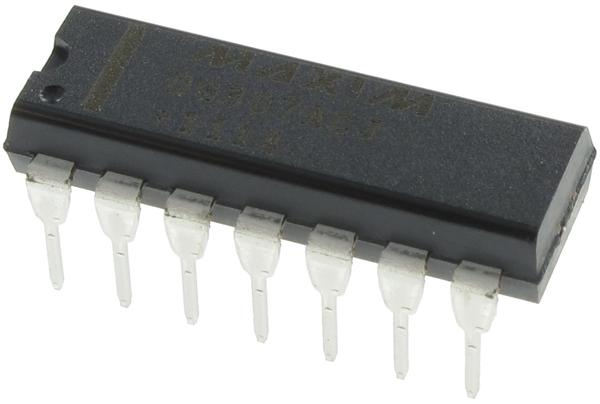

DG307ACJ+
DG307ACJ+
Maxim Integrated Products
Analog Switch ICs Dual SPDT CMOS
Data Sheet
0-1: $5.84
1-25: $3.89
25-50: $2.87
50-100: $2.82
