Product Summary
The deic420 is a CMOS high speed high current gate driver specifically designed to drive MOSFETs in Class D and E HF RF applications at up to 45MHz, as well as other applications requiring ultrafast rise and fall times or short minimum pulse widths. The deic420 can source and sink 20A of peak current while producing voltage rise and fall times of less than 4ns, and minimum pulse widths of 8ns. Applications of the deic420 include: Driving RF MOSFETs, Class D or E Switching Amplifier Drivers, Multi MHz Switch Mode Power Supplies (SMPS) , Pulse Generators, Acoustic Transducer Drivers, Pulsed Laser Diode Drivers, DC to DC Converters and Pulse Transformer Driver.
Parametrics
deic420 absolute maximum ratings: (1) Supply Voltage: 30V; (2) All Other Pins: -0.3 to VCC +0.3V; (3) Power Dissipation TAMBIENT≤25°C: 2W, TCASE≤25°C: 100W; (4) Storage Temperature: -65 to 150°C; (5) Soldering Lead Temperature (10 seconds maximum) : 300°C; (6) Maximum Junction Temperature: 150°C; (7) Operating Temperature Range: -40 to 85°C; (8) Thermal Impedance (Junction To Case) θJC: 0.13°C/W.
Features
deic420 features: (1) Built using the advantages and compatibility of CMOS and IXYS HDMOS processes; (2) Latch-Up Protected; (3) High Peak Output Current: 20A Peak; (4) Wide Operating Range: 8V to 30V; (5) Rise And Fall Times of <4ns; (6) Minimum Pulse Width Of 8ns; (7) High Capacitive Load Drive Capability: 4nF in <4ns; (8) Matched Rise And Fall Times; (9) 32ns Input To Output Delay Time; (10) Low Output Impedance; (11) Low Quiescent Supply Current.

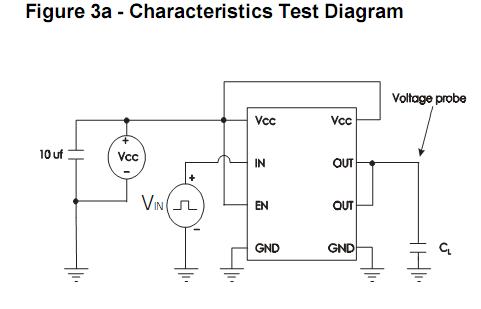

Diagrams
