Product Summary

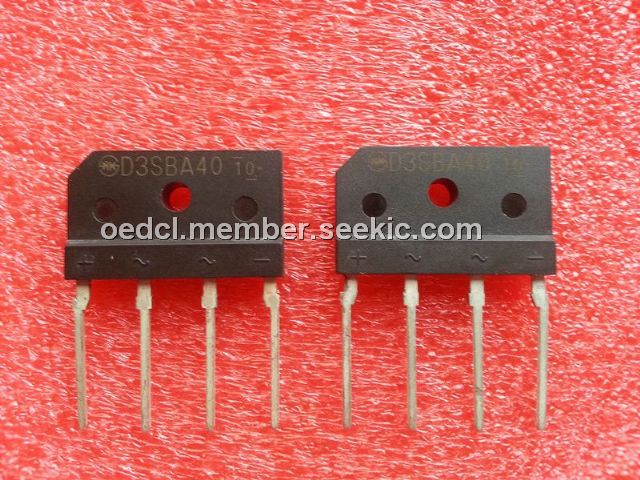

The D3SBA40 is a silicon bridge rectifier.
Parametrics
D3SBA40 absolute maximum ratings: (1)Maximum Reverse Voltage VRM:400V; (2)Maximum Average Forward Current: 4A (With heatsink, Tc = 108℃); (3)(50Hz Sine wave, R-load): 2.3A (Without heatsink, Ta = 25℃); (4)Maximum Peak Forward Surge Current (50Hz, Half-cycle, Sinwave, Single Shot): 80A; (5)Current Squared Time at 1ms≤t＜10ms, Tc=25℃: 32 A2S; (6)Maximum Forward Voltage per Diode at IF = 2.0A. VF: 1.05 V; (7)Maximum DC Reverse Current, VR=VRM (Pulse measurement, Rating of per diode): 10uA; (8)Maximum Thermal Resistance, Junction to case RθJC 5.5℃/W(With heatsink); (9)Maximum Thermal Resistance, Junction to Ambient RθJA: 30℃/W(Without heatsink); (10)Operating Junction Temperature Range TJ: 150℃; (11)Storage Temperature Range TSTG: - 40 to + 150℃.
Features
D3SBA40 features: (1)High current capability; (2)High surge current capability; (3)High reliability; (4)Low reverse current; (5)Low forward voltage drop; (6)Ideal for printed circuit board; (7)Very good heat dissipation.

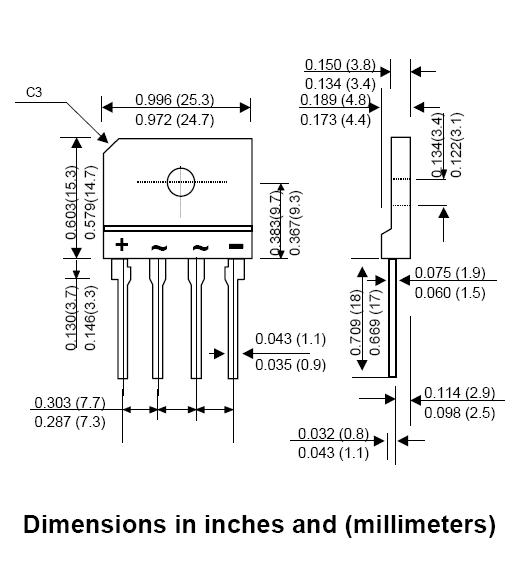

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 D3SBA40 |
Other |
|
Data Sheet |
Negotiable |
|
||||
