Product Summary

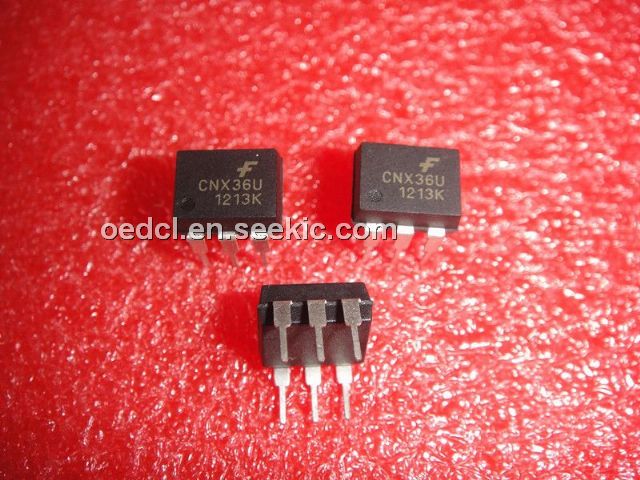

The CNX36U is a phototransistor optocoupler. The CNX36U is optically coupled isolators consisting of an infrared emitting GaAs diode and a silicon NPN phototransistor with accessible base. The CNX36U is housed in 6-pin dual-inline packages (DIP).
Parametrics
CNX36U absolute maximum ratings: (1)Storage Temperature: -55 to +150 ℃; (2)Operating Temperature: -40 to +100 ℃; (3)Lead Solder Temperature: 260 for 10 sec ℃; (4)Continuous Reverse Voltage: 5 V; (5)Continuous Forward Current: 100 mA.
Features
CNX36U features: (1)High output/input DC current transfer ratio; (2)Low saturation voltage; (3)UL recognized (File # E90700).

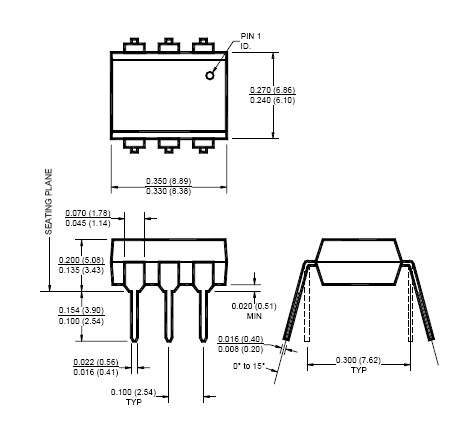

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CNX36U |
Fairchild Semiconductor |
Transistor Output Optocouplers Optocoupler Hi Bvceo Phototransistor |
Data Sheet |
Negotiable |
|
||||
|
CNX36U_Q |
Fairchild Semiconductor |
Transistor Output Optocouplers Optocoupler Hi Bvceo Phototransistor |
Data Sheet |
Negotiable |
|
||||
|
CNX36U300 |
Fairchild Semiconductor |
Transistor Output Optocouplers Optocoupler Hi Bvceo Phototransistor |
Data Sheet |
Negotiable |
|
||||
|
CNX36U3SD |
Fairchild Semiconductor |
Transistor Output Optocouplers Optocoupler Hi Bvceo Phototrans SM-DIP6 |
Data Sheet |
Negotiable |
|
||||
|
CNX36U300W |
Fairchild Semiconductor |
Transistor Output Optocouplers Optocoupler Hi Bvceo Phototransistor |
Data Sheet |
Negotiable |
|
||||
|
CNX36U3S |
Fairchild Semiconductor |
Transistor Output Optocouplers Optocoupler Hi Bvceo Phototrans SM-DIP6 |
Data Sheet |
Negotiable |
|
||||
|
CNX36UW |
Fairchild Semiconductor |
Transistor Output Optocouplers Optocoupler Hi Bvceo Phototransistor |
Data Sheet |
Negotiable |
|
||||
|
CNX36US |
Fairchild Semiconductor |
Transistor Output Optocouplers Optocoupler Hi Bvceo Phototrans SM-DIP6 |
Data Sheet |
Negotiable |
|
||||
