Product Summary

The CA3160T is a BiMOS Operational Amplifier that combines the advantage of both CMOS and bipolar transistors on a monolithic chip. The CA3160T is frequency compensated versions of the popular CA3130 series. The applications of the CA3160T include: Ground Referenced Single Supply Amplifiers, Fast Sample Hold Amplifiers, Long Duration Timers/Monostables, High Input Impedance Wideband Amplifiers, Voltage Followers (e.g., Follower for Single Supply D/A Converter), Wien-Bridge Oscillators, Voltage Controlled Oscillators, Photo Diode Sensor Amplifiers.

Parametrics

CA3160T absolute maximum ratings: (1)Supply Voltage (Between V+ and V- Terminals): +16V; (2)Differential Mode Input Voltage: 8V; (3)Input Voltage: (V+ +8V) to (V- -0.5V); (4)Input Current: 1mA; (5)Output Short Circuit Duration: Indefinite.

Features

CA3160T features: (1)MOSFET Input Stage Provides: Very High ZI = 1.5TΩ(1.5 x 1012Ω (Typ), Very Low II: 5pA (Typ) at 15V Operation, 2pA (Typ) at 5V Operation; (2)Common-Mode Input Voltage Range Includes Negative Supply Rail; Input Terminals Can Be Swung 0.5V Below Negative Supply Rail; (3)CMOS Output Stage Permits Signal Swing to Either (or Both) Supply Rails.

Diagrams

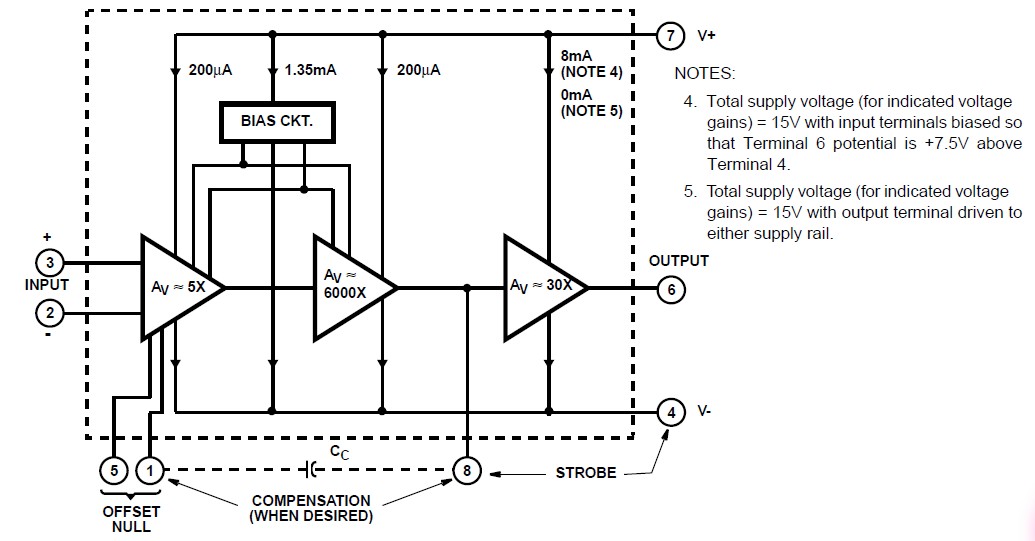

CA3160T block diagram
