Product Summary

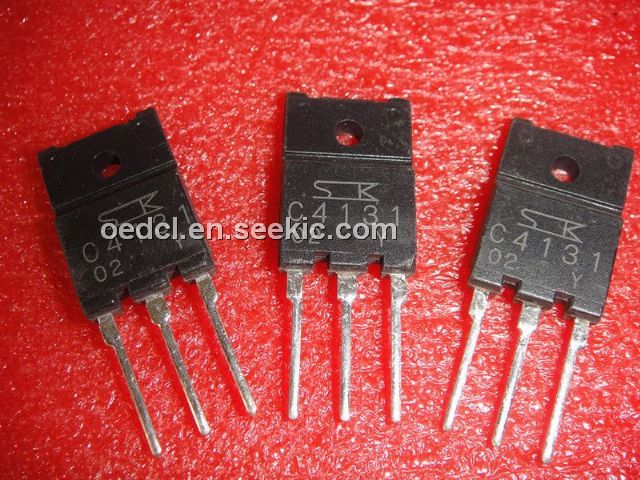

The C4131 is a Silicon NPN Epitaxial Planar Transistor. The applications of the C4131 include DC-DC Converter, Emergency Lighting Inverter and General Purpose.
Parametrics
C4131 absolute maximum ratings: (1)VCBO: 100V; (2)VCEO: 50V; (3)VEBO: 15V; (4)IC: 15(Pulse25)A; (5)IB: 4A; (6)PC: 60(Tc=25℃); (7)Tj: 150℃; (8)Tstg: –55 to +150℃.
Features
C4131 features: (1)ICBO: 10max μA; (2)IEBO: 10max μA; (3)V(BR)CEO: 50min V; (4)VCE(sat): 0.5max V; (5)VBE(sat): 1.2max V; (6)fT: 18typ MHz; (7)COB: 210typ pF.

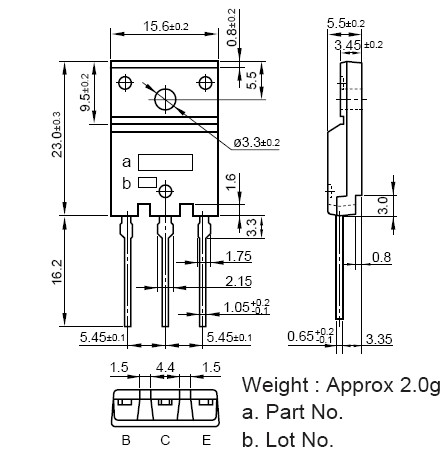

Diagrams
