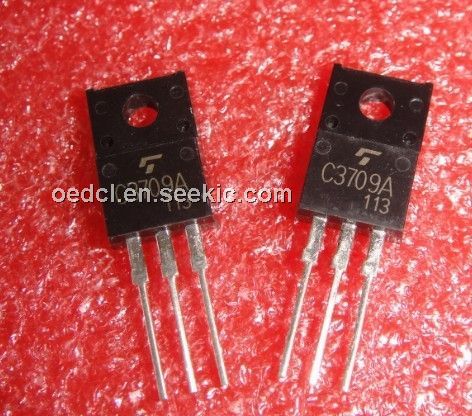

Product Summary

The C3709A is a Silicon NPN Epitaxial Type.

Parametrics

C3709A absolute maximum ratings: (1)Collector-base voltage : 60 V; (2)Collector-emitter voltage : 50 V; (3)Emitter-base voltage : 6 V; (4)Collector current : 12 A; (5)Base current : 2 A; (6)Collector power dissipation (Tc = 25℃) : 30 W; (7)Junction temperature : 150 ℃; (8)Storage temperature range : -55 to 150 ℃.

Features

C3709A features: (1)Low collector saturation voltage: VCE (sat) = 0.4 V (max); (2)High-speed switching: tstg = 1.0 μs (typ.); (3)Complementary to 2SA1451A.

Diagrams

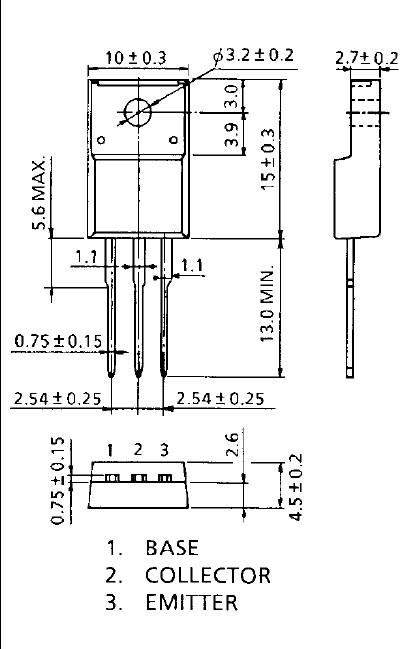

C3709A dimension
