Product Summary

The BTS723GW is a smart high-side power switch.

Parametrics

BTS723GW absolute maximum ratings: (1)Operating Voltage Vbb(on): 7.0 to 58V; (2)On-state Resistance RON: 105mΩ; (3)Nominal load current IL(NOM): 2.9A; (4)Current limitation IL(SCr): 8A.

Features

BTS723GW features: (1)Two Channels: 2 x 100mΩ; (2)Status Feedback; (3)Suitable for 42V.

Diagrams

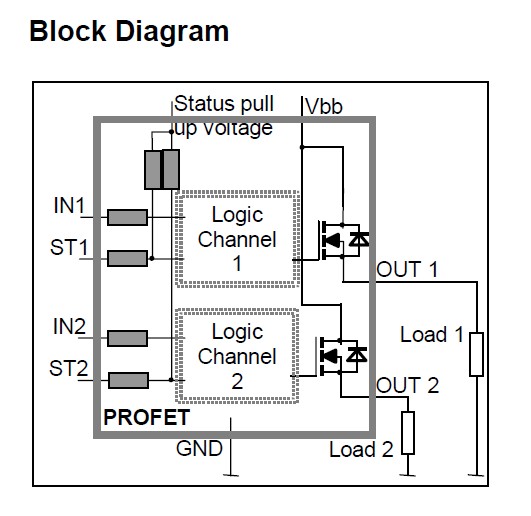

BTS723GW Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

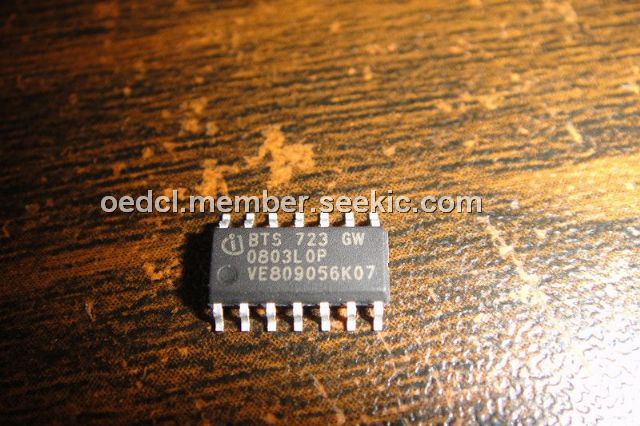

BTS723GW
BTS723GW
Infineon Technologies
Power Switch ICs - POE / LAN SMART HI SIDE PWR SWITCH 2 CHANNELS
Data Sheet
0-1: $3.67
1-10: $3.29
10-100: $2.68
100-500: $2.14
